Telecentric lenses

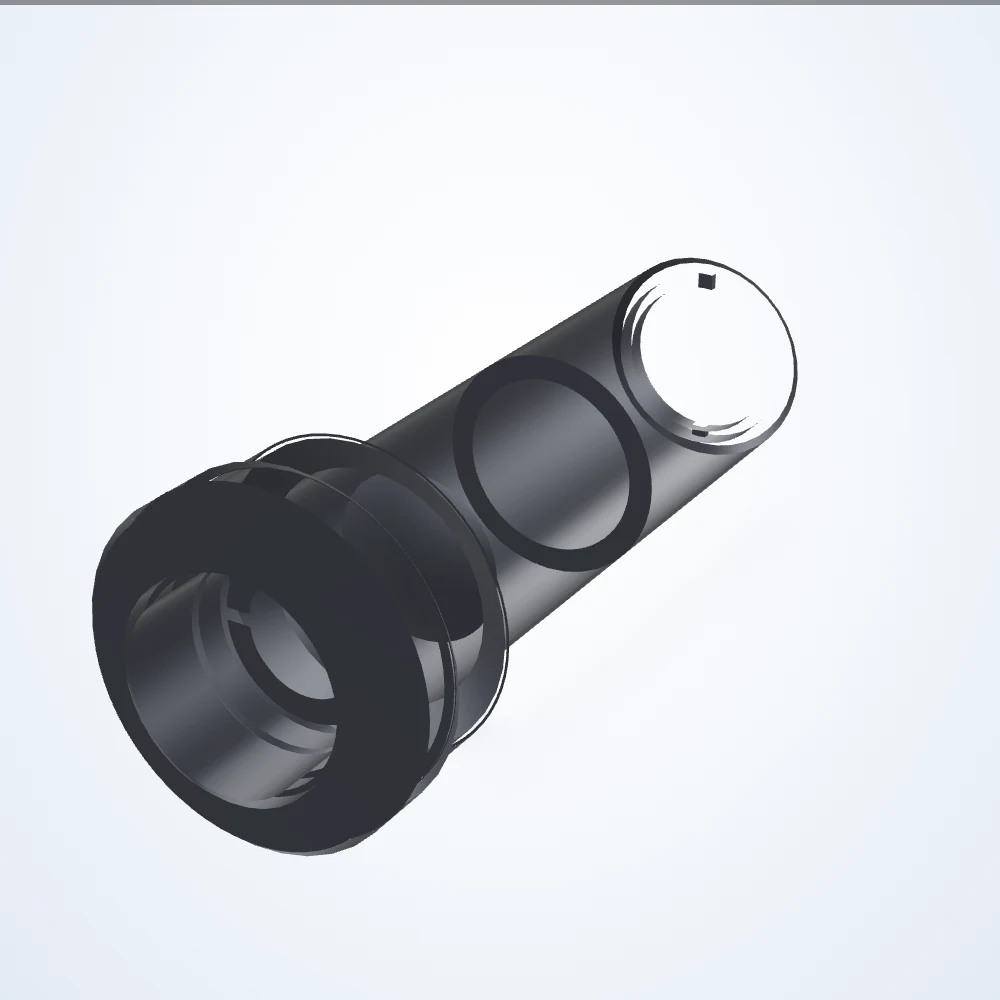

2× telecentric lens, 2/3", C-mount (LS-TCL-0235)
Model LS-TCL-0235
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 56 mm; depth of field 0.1 mm.
Specifications
| Model | LS-TCL-0235 |
|---|---|
| Magnification | 2× |
| Working distance | 56 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.1 mm |
| Dimensions approximate | 101.4 x 28 x 28 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 3.57 x 2.67 mm |
| Fov @ 1/2.0″ | 3.20 x 2.40 mm |
| Fov @ 1/2.5″ | 2.85 x 2.14 mm |
| Fov @ 1/2″ | 3.20 x 2.40 mm |
| Fov @ 1/3.0″ | 2.40 x 1.80 mm |
| Fov @ 2/3″ | 4.25 x 3.55 mm |
| Front diameter | 28 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 3 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 202 Grams |
