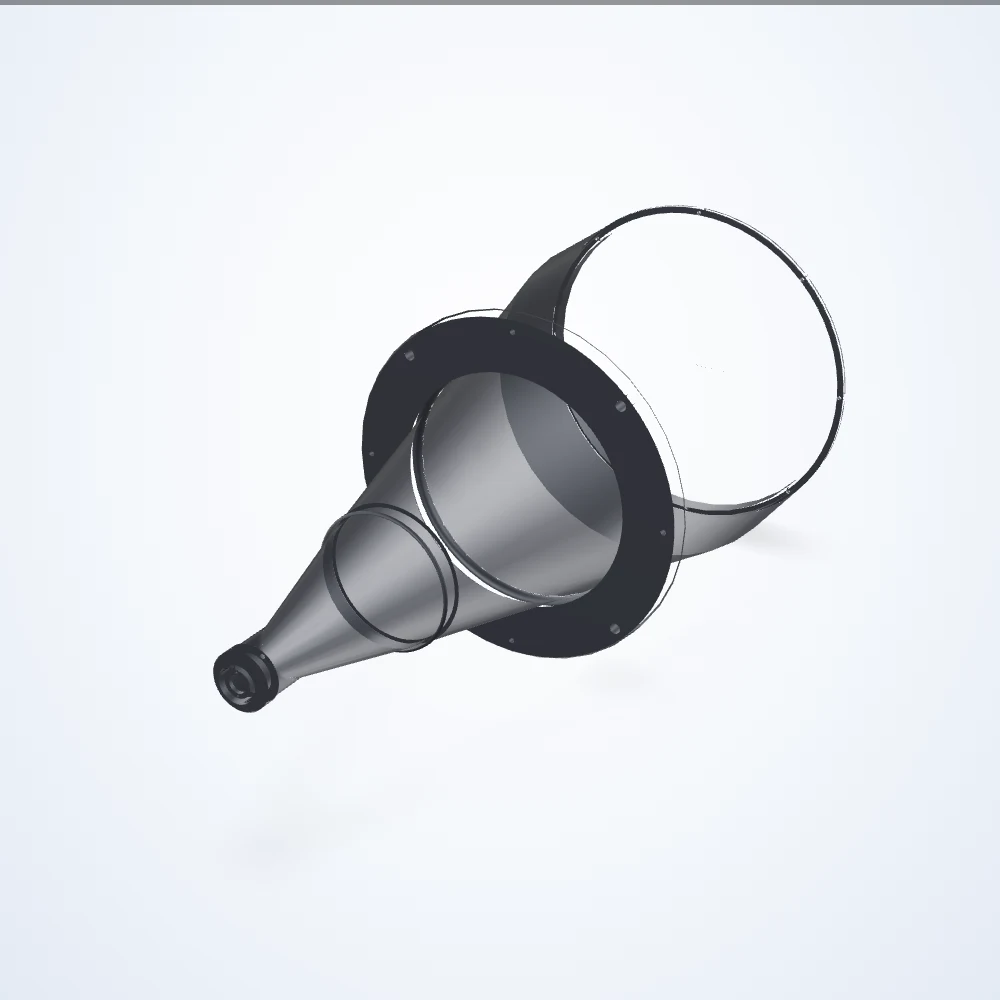

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.025× telecentric lens, 1/3", C-mount (LS-TCL-0183)
Model LS-TCL-0183
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527 mm; depth of field 662.4 mm.
Specifications
| Model | LS-TCL-0183 |
|---|---|
| Magnification | 0.025× |
| Working distance | 527 mm |
| Sensor format | 1/3" |
| Mount | C-Mount |
| Depth of field | 662.4 mm |
| Dimensions approximate | 598.2 x 260 x 260 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 213.20 mm ø |
| Fov @ 1/2.0″ | 192 mm ø |
| Fov @ 1/2.5″ | 171 mm ø |
| Fov @ 1/2″ | 192 mm ø |
| Fov @ 1/3.0″ | 192.00 x 144.00 mm |
| Fov @ 2/3″ | 240 mm ø |
| Front diameter | 260 mm |
| Image circle | 6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 203 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 9830 Grams |
