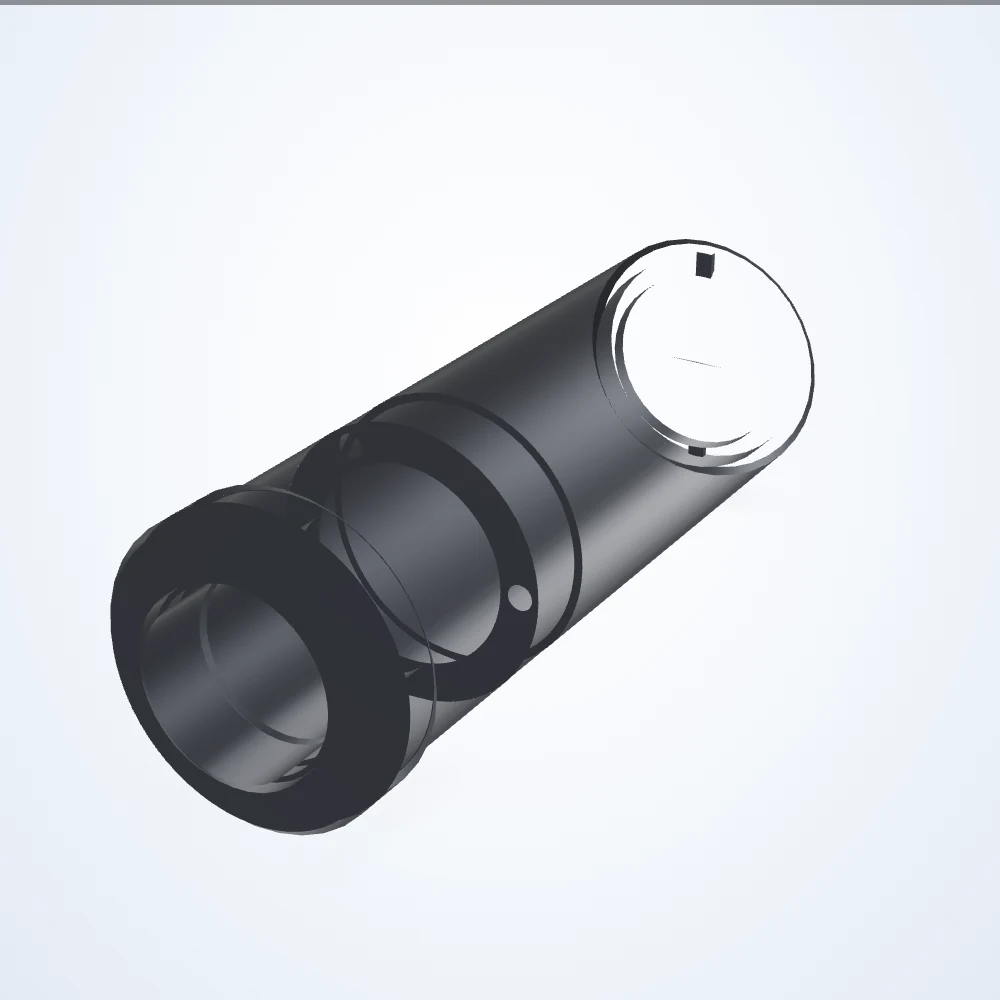

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.528× telecentric lens, 2/3", C-mount (LS-TCL-0239)
Model LS-TCL-0239
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 1.5 mm.
Specifications
| Model | LS-TCL-0239 |
|---|---|
| Magnification | 0.528× |
| Working distance | 43.1 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 1.5 mm |
| Dimensions approximate | 112.7 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.07 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 13.50 x 10.09 mm |
| Fov @ 1/2.0″ | 12.12 x 9.09 mm |
| Fov @ 1/2.5″ | 10.80 x 8.11 mm |
| Fov @ 1/2″ | 12.12 x 9.09 mm |
| Fov @ 1/3.0″ | 9.09 x 6.82 mm |
| Fov @ 2/3″ | 16.10 x 13.43 mm |
| Front diameter | 37.7 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 10 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 301 Grams |
