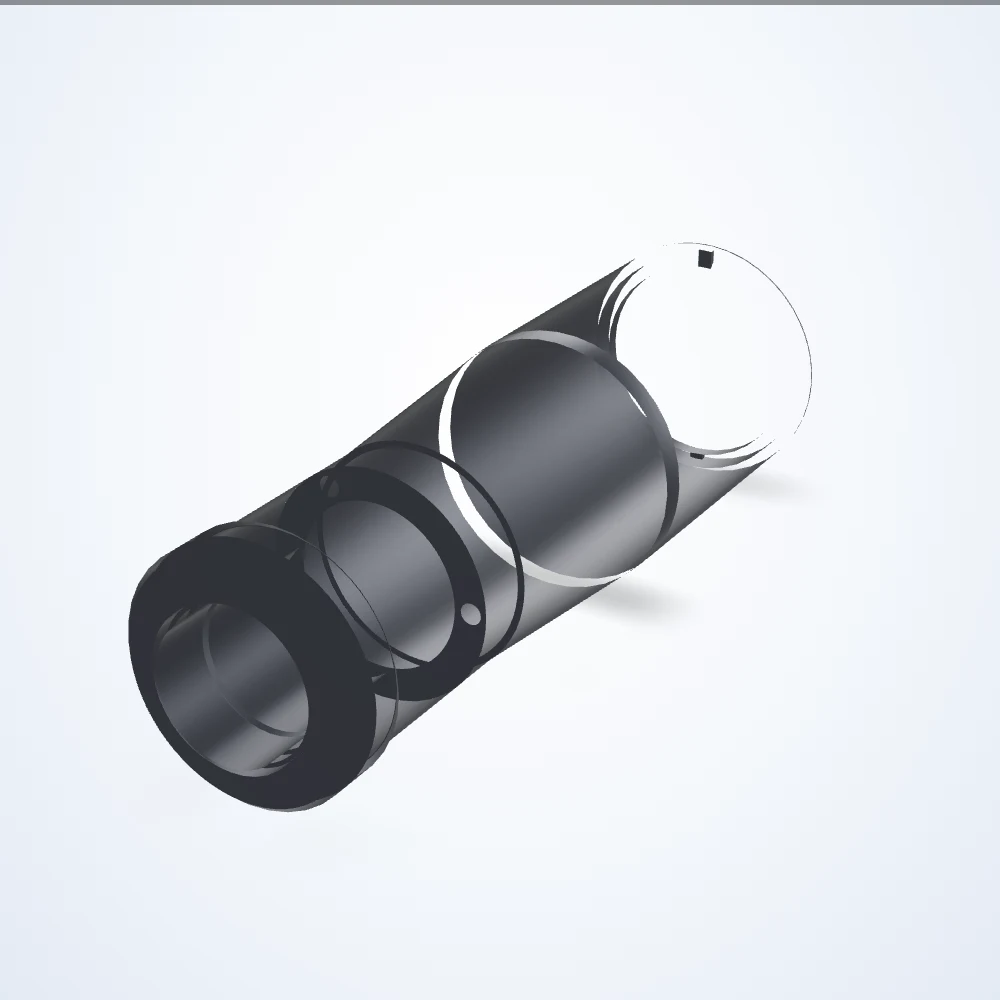

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.35× telecentric lens, 2/3", C-mount (LS-TCL-0240)
Model LS-TCL-0240
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 67.2 mm; depth of field 3.4 mm.
Specifications
| Model | LS-TCL-0240 |
|---|---|
| Magnification | 0.35× |
| Working distance | 67.2 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 3.4 mm |
| Dimensions approximate | 137.5 x 44 x 44 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 20.37 x 15.23 mm |
| Fov @ 1/2.0″ | 18.29 x 13.71 mm |
| Fov @ 1/2.5″ | 16.29 x 12.23 mm |
| Fov @ 1/2″ | 18.29 x 13.71 mm |
| Fov @ 1/3.0″ | 13.71 x 10.29 mm |
| Fov @ 2/3″ | 24.29 x 20.26 mm |
| Front diameter | 44 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 15 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 389 Grams |
