Home / Lenses / Telecentric lenses / 0.104× telecentric lens, 2/3", C-Mount

0.104× telecentric lens, 2/3", C-Mount (LS-TCL-0247)

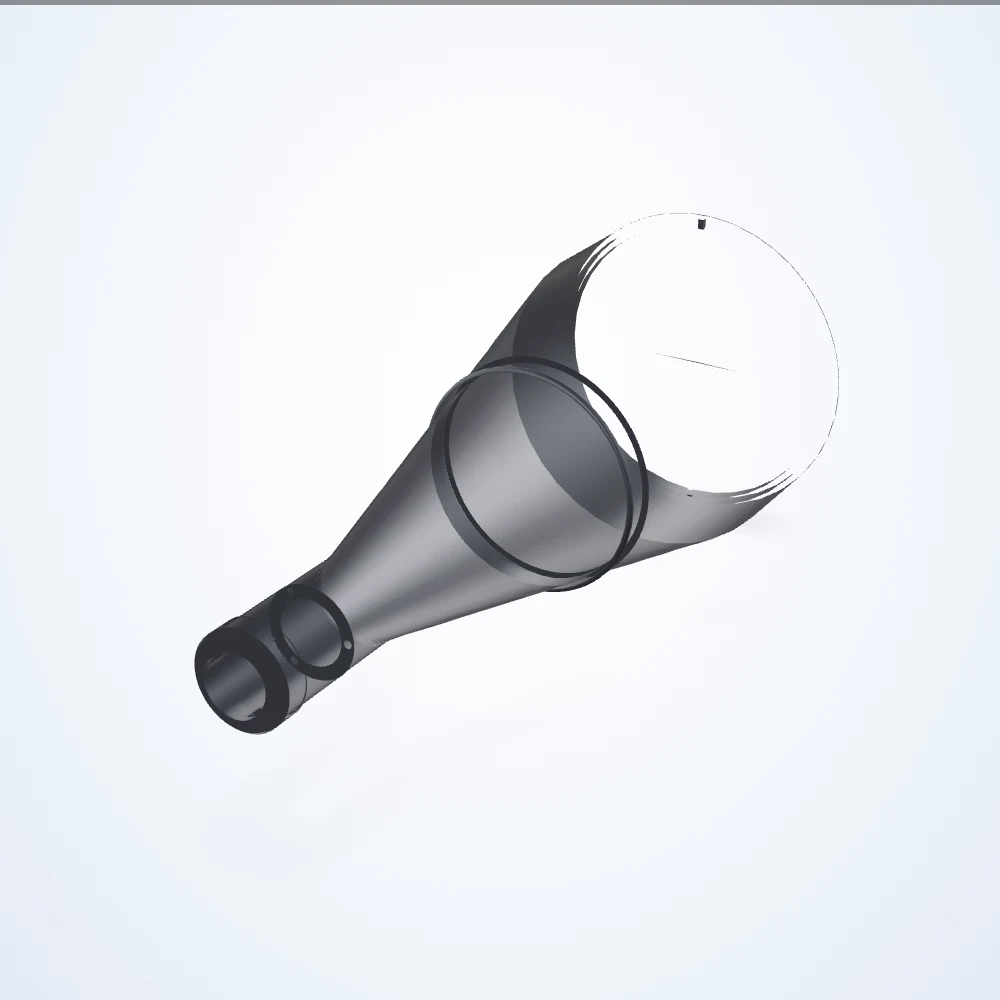

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.104× telecentric lens, 2/3", C-Mount (LS-TCL-0247)

Model LS-TCL-0247

0.104× telecentric lens, 2/3", C-Mount. Working distance 279.7 mm. Depth of field 38.3 mm.

Datasheet (PDF) - LS-TCL-0247 3D model (STEP) - LS-TCL-0247

Specifications

Model	LS-TCL-0247
Depth Of Field	38.3 mm
Distortion Maximum (%)	< 0.08
Distortion Typical (%)	< 0.02
Filter Thread	No Filter Threads
FoV @ 1/1.8″	68.56 x 51.25 mm
FoV @ 1/2.0″	61.54 x 46.15 mm
FoV @ 1/2.5″	54.81 x 41.15 mm
FoV @ 1/3.0″	46.15 x 34.62 mm
FoV @ 2/3″	81.73 x 68.17 mm
Front Diameter	143 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.104×
Mount	C-Mount
Resolution (Pixel Size)	49 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.04°
Working Distance	279.7 mm
Working ƒ/N	f/8
