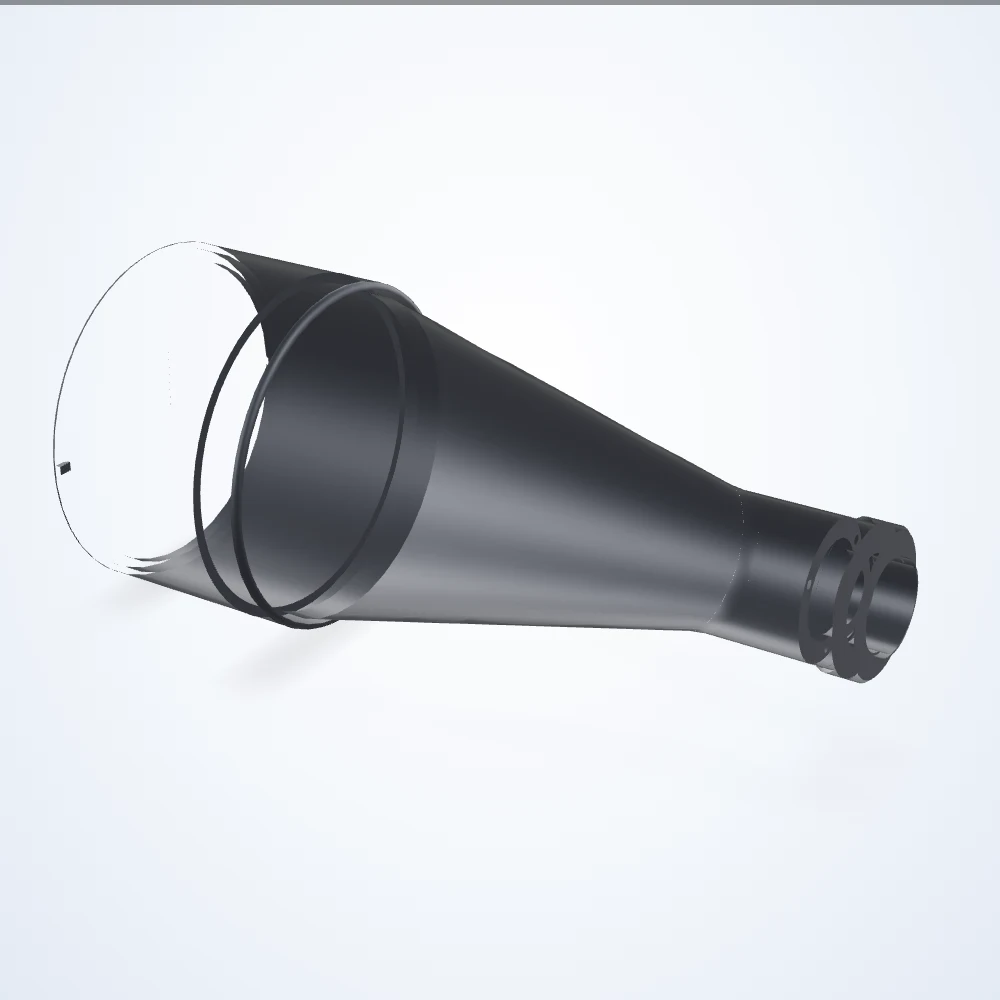

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.1× telecentric lens, 1/2", C-mount (LS-TCL-0141)
Model LS-TCL-0141
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.8 mm; depth of field 41.4 mm.
Specifications
| Model | LS-TCL-0141 |
|---|---|
| Magnification | 0.1× |
| Working distance | 181.8 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 41.4 mm |
| Dimensions approximate | 225.9 x 100 x 100 mm |
| Distortion maximum (%) | < 0.07 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 71.30 x 53.30 mm |
| Fov @ 1/2.0″ | 64.00 x 48.00 mm |
| Fov @ 1/2.5″ | 57.00 x 42.80 mm |
| Fov @ 1/2″ | 64.00 x 48.00 mm |
| Fov @ 1/3.0″ | 48.00 x 36.00 mm |
| Fov @ 2/3″ | 70.9 mm ø |
| Front diameter | 100 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 51 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 979 Grams |
