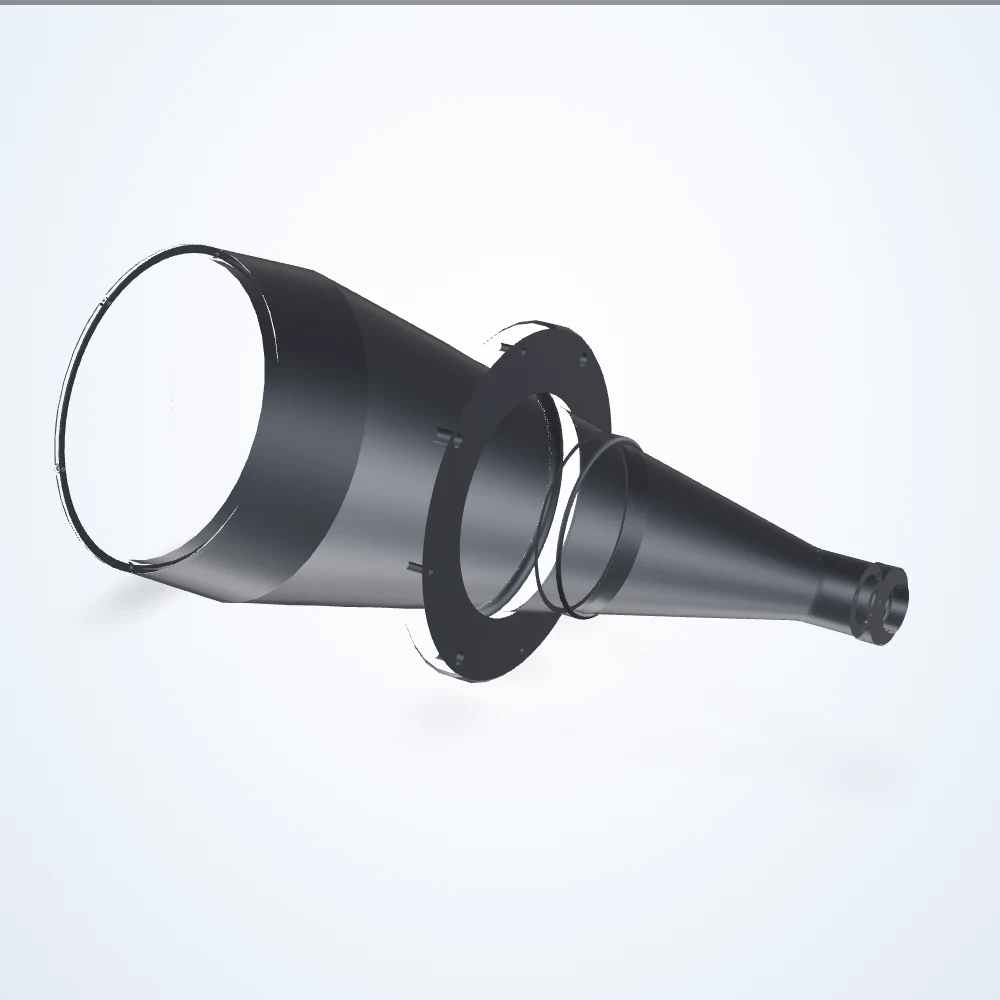

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.044× telecentric lens, 1/2", C-mount (LS-TCL-0145)
Model LS-TCL-0145
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 213.8 mm.
Specifications
| Model | LS-TCL-0145 |
|---|---|
| Magnification | 0.044× |
| Working distance | 396 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 213.8 mm |
| Dimensions approximate | 462.1 x 200 x 200 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 162.05 x 121.14 mm |
| Fov @ 1/2.0″ | 145.45 x 109.09 mm |
| Fov @ 1/2.5″ | 129.55 x 97.27 mm |
| Fov @ 1/2″ | 145.45 x 109.09 mm |
| Fov @ 1/3.0″ | 109.09 x 81.82 mm |
| Fov @ 2/3″ | 161 mm ø |
| Front diameter | 200 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 115 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 5799 Grams |
