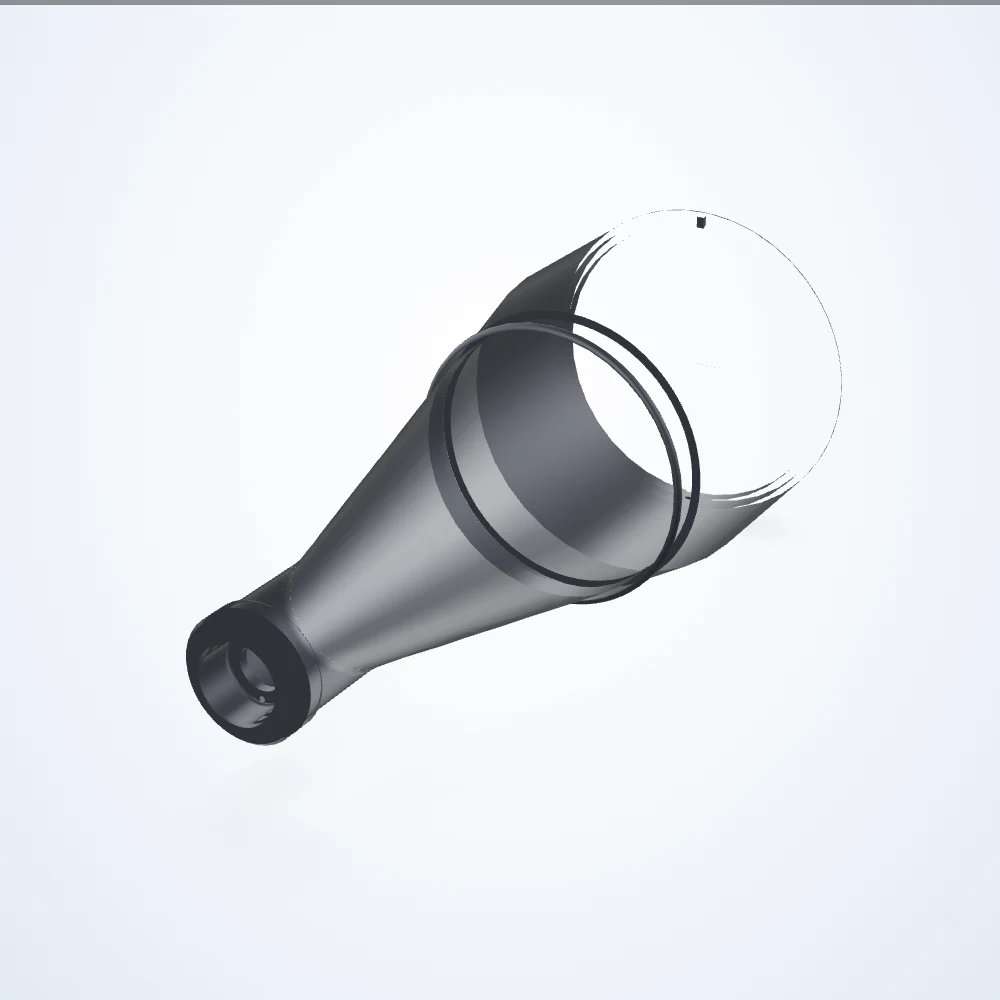

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.08× telecentric lens, 1/2", C-mount (LS-TCL-0142)
Model LS-TCL-0142
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.7 mm; depth of field 64.7 mm.
Specifications
| Model | LS-TCL-0142 |
|---|---|
| Magnification | 0.08× |
| Working distance | 226.7 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 64.7 mm |
| Dimensions approximate | 271.5 x 116 x 116 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 89.13 x 66.63 mm |
| Fov @ 1/2.0″ | 80.00 x 60.00 mm |
| Fov @ 1/2.5″ | 71.25 x 53.50 mm |
| Fov @ 1/2″ | 80.00 x 60.00 mm |
| Fov @ 1/3.0″ | 60.00 x 45.00 mm |
| Fov @ 2/3″ | 88.6 mm ø |
| Front diameter | 116 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 63 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/8 |
| Weight | 1411 Grams |
