Coaxial lights · 4 models · from $109.00

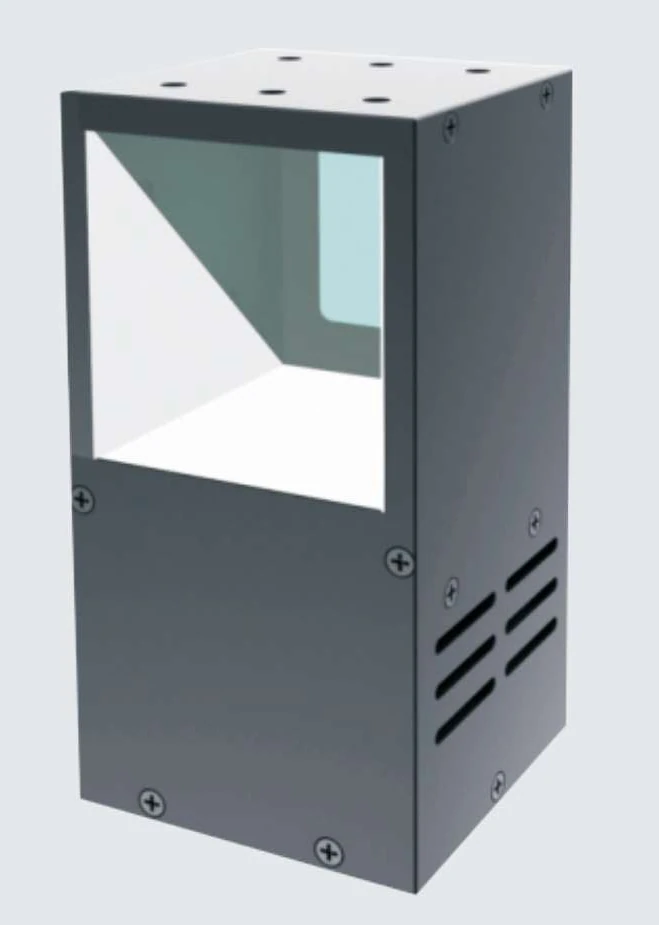

High-brightness coaxial light (HHCOL)
The High-brightness coaxial light (HHCOL) is a range of 4 coaxial lights from LumaSpec Vision, from $109.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 40 x 40 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 48 V |
Features
- Observation window and beam splitter specially customised
Typical uses
- Dents, damage and defects on reflective surfaces
- Characters and patterns on printed circuit boards
- High-speed SMT placement
- Motor centre positioning
All 4 models in the High-brightness coaxial light (HHCOL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HHCOL40 | 40 x 40 mm | 31 W | $109.00 | 12 in stock | View | |
| LS-HHCOL60 | 60 x 60 mm | 46.5 W | $159.00 | 11 in stock | View | |
| LS-HHCOL80P | 80 x 80 mm | 81 W | $219.00 | 15 in stock | View | |
| LS-HHCOL100 | 100 x 100 mm | 135 W | $289.00 | 13 in stock | View |
