Coaxial lights · 8 models · from $69.00

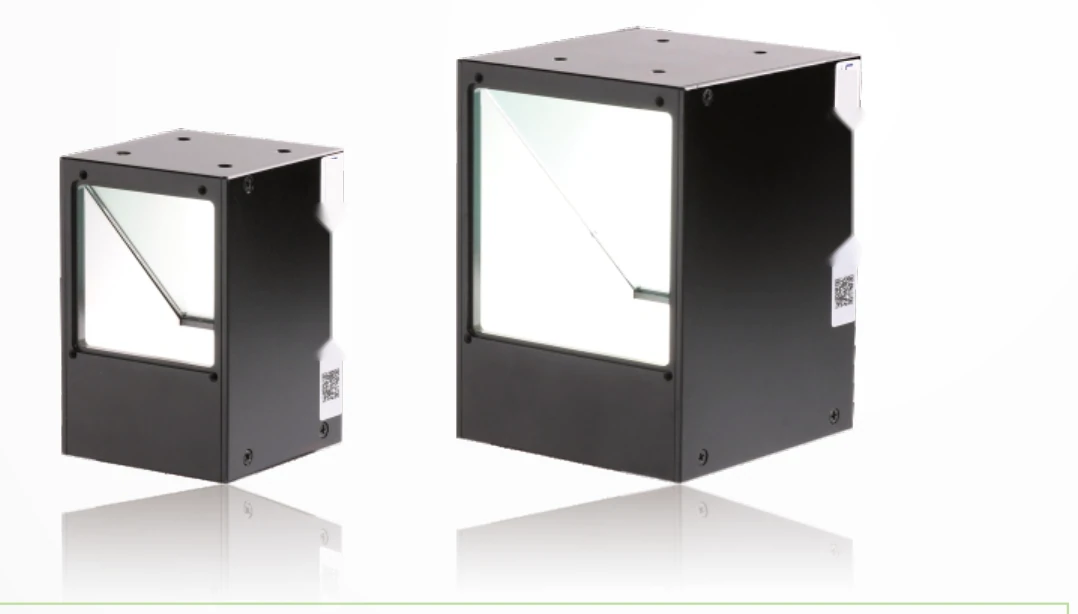

Coaxial light (3COX)
The Coaxial light (3COX) is a range of 8 coaxial lights from LumaSpec Vision, from $69.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 x 20 mm, 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm, 120 x 120 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Luminance up 50%
- Compact, high cost-effective
- Removes the double image effectively
- Cover wire jacket, anti-pull
- Can add dust-proof mirror
- Cover wire jacket, anti-pulls
- Can add dust-proof mirror, dust-proof
Typical uses
- Damage inspection of chips and wafers
- Scratches on reflective surfaces
- Bar code / QR code recognition
- Printing and silk-screen inspection
- Imaging example: stitch inspection on components (LS-3COX40-W)
- The damage inspection of the chip, wafer
All 8 models in the Coaxial light (3COX)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3COX20 | 20 x 20 mm | 0.8 W | $69.00 | 17 in stock | View | |
| LS-3COX30 | 30 x 30 mm | 2.2 W | $89.00 | 16 in stock | View | |
| LS-3COX40 | 40 x 40 mm | 2.6 W | $109.00 | 14 in stock | View | |
| LS-3COX50 | 50 x 50 mm | 5.4 W | $129.00 | 12 in stock | View | |
| LS-3COX60 | 60 x 60 mm | 7.2 W | $159.00 | 14 in stock | View | |
| LS-3COX80 | 80 x 80 mm | 12.6 W | $219.00 | 11 in stock | View | |
| LS-3COX100 | 100 x 100 mm | 18.4 W | $289.00 | 13 in stock | View | |
| LS-3COX120 | 120 x 120 mm | 25.2 W | $369.00 | 12 in stock | View |
