Coaxial lights · 17 models · from $69.00

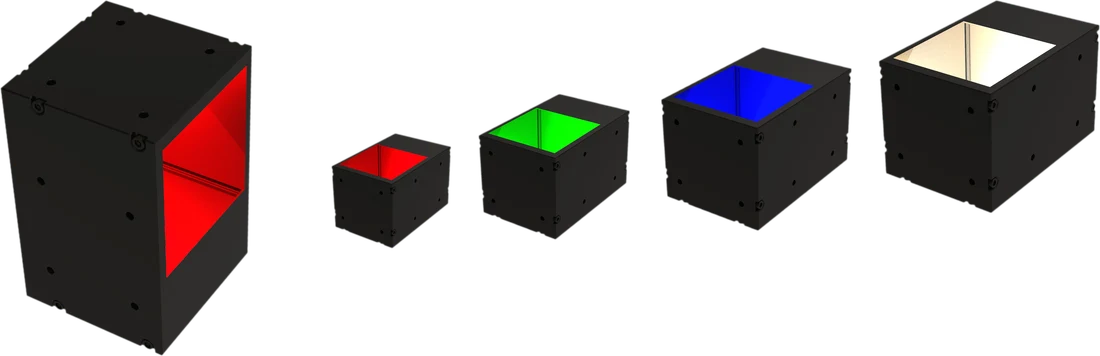

Coaxial light (CON series)
The Coaxial light (CON series) is a range of 17 coaxial lights from LumaSpec Vision, from $69.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 x 20 mm, 30 x 30 mm, 35 x 35 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 100 x 100 mm, 126 x 126 mm, 150 x 120 mm, 200 x 180 mm, 240 x 180 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Special optical beam splitter without shadow
- Higher brightness solutions available for the same size
- High uniformity
- Compact design with flexible installation
Typical uses
- Scratch detection on metal/glass
- QR code inspection
- Silkscreen alignment
- MARK location
- Chip damage
- Bearing/bottle engraving check
All 17 models in the Coaxial light (CON series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CON-20 | 20 x 20 mm | 3 W | $69.00 | 12 in stock | View | |
| LS-CON-30 | 30 x 30 mm | 3.5 W | $89.00 | 14 in stock | View | |
| LS-CON-35 | 35 x 35 mm | 3.6 W | $99.00 | 17 in stock | View | |
| LS-CON-40 | 40 x 40 mm | 5.5 W | $109.00 | 15 in stock | View | |
| LS-CON-50 | 50 x 50 mm | 6.5 W | $129.00 | 15 in stock | View | |
| LS-2CON-50 | 50 x 50 mm | 7.2 W | $129.00 | 11 in stock | View | |
| LS-CON-60 | 60 x 60 mm | 10.8 W | $159.00 | 11 in stock | View | |
| LS-2CON-60 | 60 x 60 mm | 12.5 W | $159.00 | 11 in stock | View | |
| LS-CON-70 | 70 x 70 mm | 7 W | $189.00 | 15 in stock | View | |
| LS-CON-80 | 80 x 80 mm | 7 W | $219.00 | 13 in stock | View | |
| LS-2CON-80 | 80 x 80 mm | 17.3 W | $219.00 | 9 in stock | View | |
| LS-CON-100 | 100 x 100 mm | 22 W | $289.00 | 15 in stock | View | |
| LS-2CON-100 | 100 x 100 mm | 21.6 W | $289.00 | 14 in stock | View | |
| LS-CON-120 | 126 x 126 mm | 18 W | $399.00 | 15 in stock | View | |
| LS-CON-150X120 | 150 x 120 mm | 21 W | $509.00 | 13 in stock | View | |
| LS-CON-200X180 | 200 x 180 mm | 46 W | $789.00 | 14 in stock | View | |
| LS-CON-240X180 | 240 x 180 mm | 56 W | $1,059.00 | 19 in stock | View |
