Coaxial lights · 12 models · from $89.00

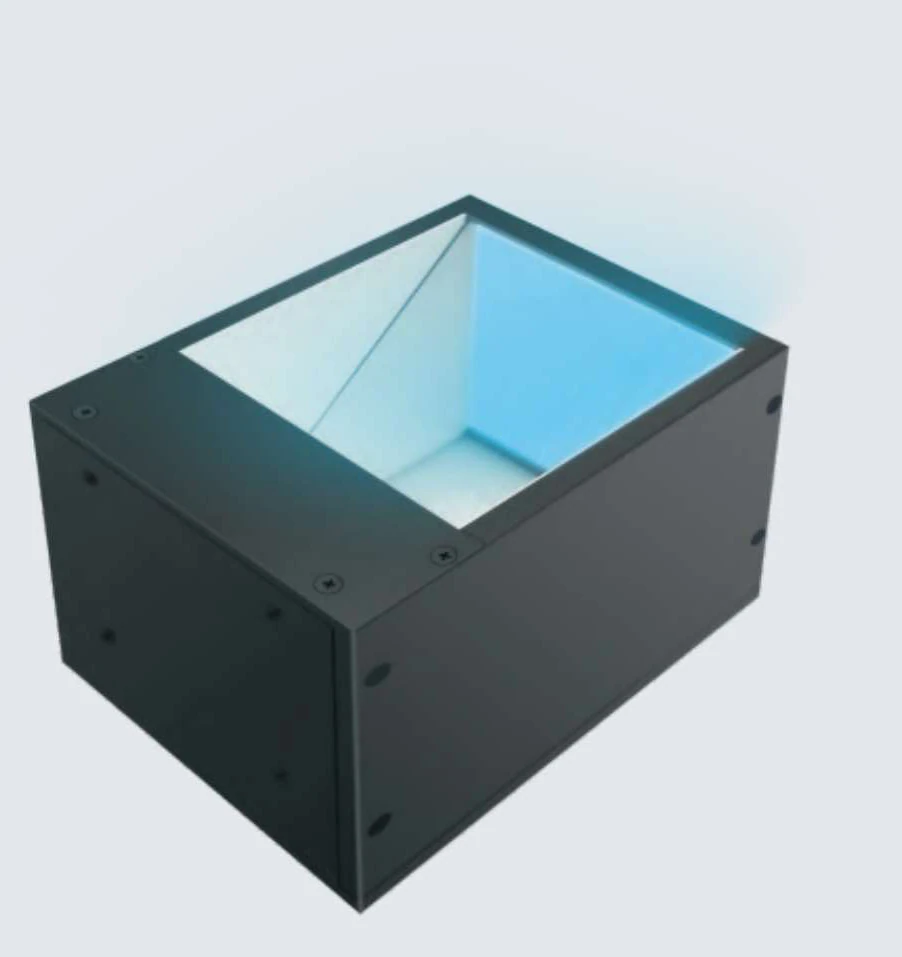

Coaxial light (HCOL)
The Coaxial light (HCOL) is a range of 12 coaxial lights from LumaSpec Vision, from $89.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 40 x 40 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm, 120 x 120 mm, 140 x 140 mm, 180 x 100 mm, 180 x 130 mm, 200 x 60 mm, 290 x 110 mm, 300 x 200 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Sharp imaging, high brightness, good uniformity
- Size, emitting area and mounting holes can be customised
Typical uses
- Laser marking on wafers
- Engraved characters on metal surfaces, bearings and beverage cans
- 2D codes printed on metal and glass plates
All 12 models in the Coaxial light (HCOL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HCOL30K | 30 x 30 mm | 3.5 W | $89.00 | 12 in stock | View | |
| LS-HCOL40K | 40 x 40 mm | 5 W | $109.00 | 15 in stock | View | |
| LS-HCOL60K | 60 x 60 mm | 5 W | $159.00 | 12 in stock | View | |
| LS-HCOL80K | 80 x 80 mm | 9.5 W | $219.00 | 15 in stock | View | |
| LS-HCOL100K | 100 x 100 mm | 15 W | $289.00 | 15 in stock | View | |
| LS-HCOL120P | 120 x 120 mm | 19 W | $369.00 | 12 in stock | View | |
| LS-HCOL140P | 140 x 140 mm | 26 W | $459.00 | 11 in stock | View | |
| LS-HCOL180100 | 180 x 100 mm | 30 W | $669.00 | 14 in stock | View | |
| LS-HCOL180130 | 180 x 130 mm | 48 W | $669.00 | 16 in stock | View | |
| LS-HCOL20060 | 200 x 60 mm | 16.5 W | $789.00 | 11 in stock | View | |
| LS-HCOL290110 | 290 x 110 mm | 76 W | $1,459.00 | 14 in stock | View | |
| LS-HCOL300200 | 300 x 200 mm | 72 W | $1,549.00 | 12 in stock | View |
