Coaxial lights · 16 models · from $59.00

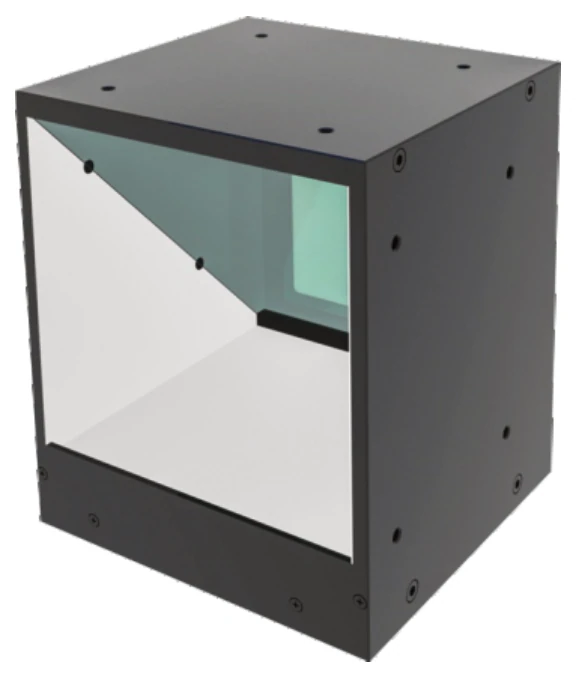

Coaxial light (COS series)
The Coaxial light (COS series) is a range of 16 coaxial lights from LumaSpec Vision, from $59.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 16 x 14.6 mm, 19 x 19 mm, 26 x 25 mm, 30 x 30 mm, 39 x 38 mm, 55 x 40 mm, 61 x 60 mm, 70 x 40 mm, 80 x 80 mm, 102 x 100 mm, 120 x 120 mm, 120 x 65 mm, 140 x 140 mm, 180 x 130 mm, 490 x 59 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 12 V |
| Connector | JST SM-2A (core 1 +, core 2 -) |
Features
- High uniformity, clear imaging
- Highly effective heat dissipation, prolonged life-span
- Reduced light loss by the beam splitter with special coating
- Highlights the unevenness on the object surface, eliminates reflection
Typical uses
- Scratches on high-reflective surfaces, bubbles and other defects inspection
- Inspection of breakage on chip parts and silicon wafers
- LED surface defect inspection
- Mark point positioning
- QR code recognition
- Dial angle measurement
All 16 models in the Coaxial light (COS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-COS14 | 16 x 14.6 mm | 0.9 W | $59.00 | 15 in stock | View | |
| LS-COS18 | 19 x 19 mm | 1.8 W | $59.00 | 13 in stock | View | |
| LS-COS25 | 26 x 25 mm | 2.3 W | $79.00 | 13 in stock | View | |
| LS-COS30 | 30 x 30 mm | 4.5 W | $89.00 | 16 in stock | View | |
| LS-COS40 | 39 x 38 mm | 6.3 W | $99.00 | 13 in stock | View | |
| LS-COS5540 | 55 x 40 mm | 4.5 W | $139.00 | 12 in stock | View | |
| LS-COS60 | 61 x 60 mm | 7.2 W | $159.00 | 16 in stock | View | |
| LS-COS7040 | 70 x 40 mm | 9 W | $189.00 | 13 in stock | View | |
| LS-COS80 | 80 x 80 mm | 14 W | $219.00 | 15 in stock | View | |
| LS-COS100 | 102 x 100 mm | 22 W | $299.00 | 14 in stock | View | |
| LS-COS120 | 120 x 120 mm | 27 W | $369.00 | 15 in stock | View | |
| LS-COS12065 | 120 x 65 mm | 18 W | $369.00 | 15 in stock | View | |
| LS-COS140 | 140 x 140 mm | 36 W | $459.00 | 13 in stock | View | |
| LS-COS140-W | 140 x 140 mm | 36 W | $459.00 | 5 in stock | View | |
| LS-COS180130 | 180 x 130 mm | 44 W | $669.00 | 12 in stock | View | |
| LS-COS49065-EX | 490 x 59 mm | 34 W | $3,679.00 | 11 in stock | View |
