Coaxial lights · 6 models · from $79.00

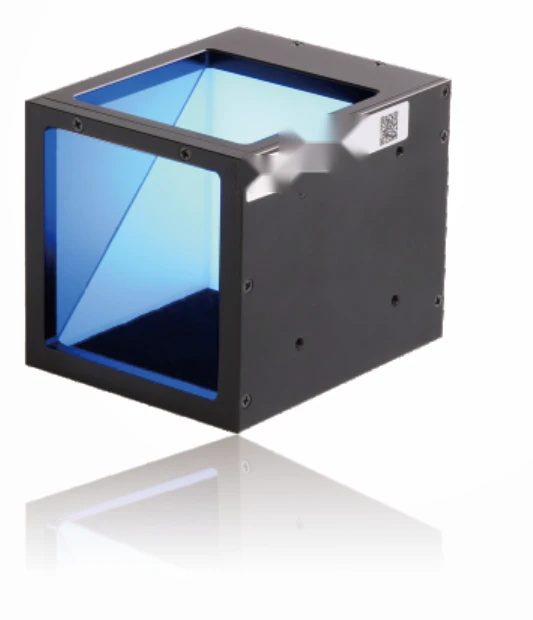

Right-angle coaxial light (COXR)
The Right-angle coaxial light (COXR) is a range of 6 coaxial lights from LumaSpec Vision, from $79.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 19 x 25 mm, 19 x 35 mm, 27.5 x 28 mm, 38 x 38 mm, 59 x 56 mm, 100 x 100 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Compact, space saving
- 90 degrees between the light ray and the CCD camera, compact structure
- Customizable: Viewport, Length and width, Combined light, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Surface scratch inspection of bright, clear objects
- Food packing
- Imaging example: contour detection on a mobile phone shell (LS-COXR40-W), clear uniform image strengthens the edge
All 6 models in the Right-angle coaxial light (COXR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-COXR2520 | 19 x 25 mm | 1.5 W | $79.00 | 14 in stock | View | |
| LS-COXR30 | 27.5 x 28 mm | 2.2 W | $79.00 | 16 in stock | View | |
| LS-COXR3520 | 19 x 35 mm | 1.5 W | $99.00 | 10 in stock | View | |
| LS-COXR40 | 38 x 38 mm | 5 W | $99.00 | 15 in stock | View | |
| LS-2COXR60 | 59 x 56 mm | 7.2 W | $149.00 | 14 in stock | View | |
| LS-2COXR100 | 100 x 100 mm | 18.4 W | $289.00 | 14 in stock | View |
