Coaxial lights · 12 models · from $89.00

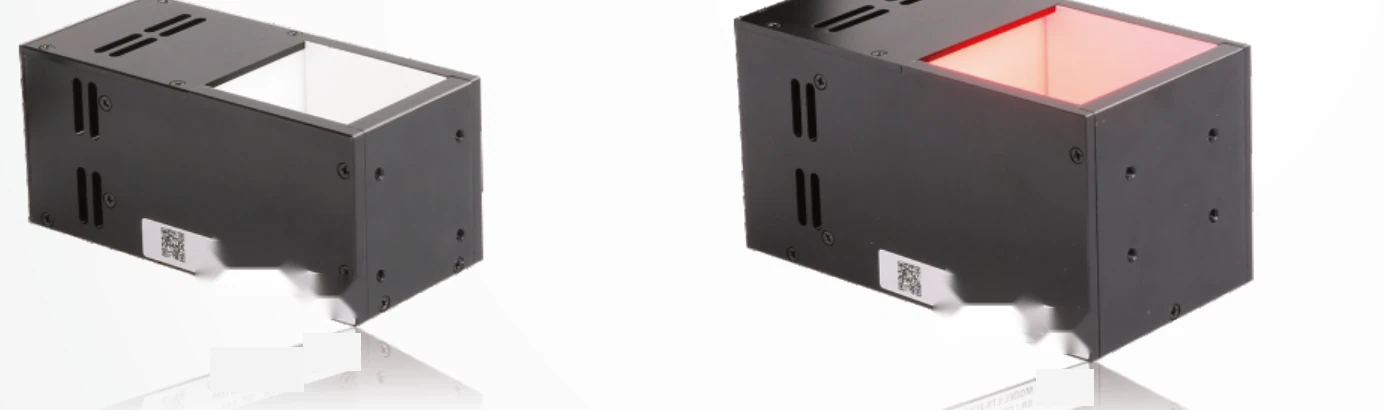

Narrow angle coaxial light (3CON)
The Narrow angle coaxial light (3CON) is a range of 12 coaxial lights from LumaSpec Vision, from $89.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High uniformity, high luminance
- Light rays approximately parallel
- Suited to mirror surfaces
- Fan cooled; fan and light are powered independently
- Wire jacket covers the cable exit, anti-pull
- Compared with coaxial light LS-3COX40-W in the same test environment, LS-3CON40-W has higher luminance and gives better contrast and a steadier effect
- Customizable: Viewport, Length and width, Parallel film, Colour & colour temperature, Combined light, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Defect inspection of reflective surfaces
- Mark position location
- Crack or scratch inspection of metal surfaces
- Edge measurement and contour inspection
- Surface character inspection of electronic components
- Imaging example: character inspection on a watch shell (LS-3CON40-W), white characters on a black background
All 12 models in the Narrow angle coaxial light (3CON)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3CON30 | 30 x 30 mm | 8.7 W | $89.00 | 13 in stock | View | |
| LS-3CON40 | 40 x 40 mm | 10.1 W | $109.00 | 12 in stock | View | |
| LS-3CON50 | 50 x 50 mm | 21.6 W | $129.00 | 14 in stock | View | |
| LS-3CON60 | 60 x 60 mm | 28.8 W | $159.00 | 15 in stock | View | |
| LS-3CON30-N | $169.00 | 15 in stock | View | |||
| LS-3CON40-N | $199.00 | 17 in stock | View | |||
| LS-3CON80 | 80 x 80 mm | 50.4 W | $219.00 | 11 in stock | View | |
| LS-3CON50-N | $229.00 | 14 in stock | View | |||
| LS-3CON60-N | $269.00 | 16 in stock | View | |||
| LS-3CON100 | 100 x 100 mm | 73.5 W | $289.00 | 16 in stock | View | |
| LS-3CON80-N | $339.00 | 15 in stock | View | |||
| LS-3CON100-N | $429.00 | 10 in stock | View |
