Coaxial lights · 23 models · from $59.00

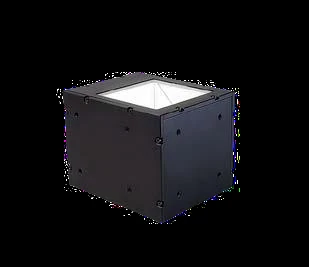

Coaxial light source (CO)
The Coaxial light source (CO) is a range of 23 coaxial lights from LumaSpec Vision, from $59.00. It comes in 21 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 13 x 13 mm, 18 x 18 mm, 27 x 25 mm, 32 x 30 mm, 42 x 38 mm, 52 x 108 mm, 52 x 133 mm, 52 x 53 mm, 62 x 60 mm, 74 x 69 mm, 75 x 120 mm, 80 x 180 mm, 80 x 80 mm, 95 x 88 mm, 102 x 100 mm, 102 x 200 mm and 5 more |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Voltage | 24 V |
Features
- Clear imaging, high brightness, uniform coaxial illumination
- Highlights uneven surface textures, overcoming interference caused by surface reflection
- Detects scratches, dents, cracks and foreign objects on smooth and flat objects
- Size can be customized according to different needs
Typical uses
- Scratches, dents and defects on reflective surfaces
- Character, pattern, QR code and barcode recognition
- Appearance inspection of smooth-surface products, mark point positioning of FPCs, sheet metal positioning and identification
- Chip edge positioning
- Character recognition
All 23 models in the Coaxial light source (CO)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CO13-Z | 13 x 13 mm | 0.4 W | $59.00 | 17 in stock | View | |
| LS-CO18 | 18 x 18 mm | 1.7 W | $59.00 | 25 in stock | View | |
| LS-CO25 | 27 x 25 mm | 1.9 W | $79.00 | 18 in stock | View | |
| LS-CO30 | 32 x 30 mm | 1.6 W | $89.00 | 24 in stock | View | |
| LS-C040 | 42 x 38 mm | 2 W | $109.00 | 19 in stock | View | |
| LS-CO50 | 52 x 53 mm | 2.4 W | $139.00 | 22 in stock | View | |
| LS-CO25-Z | 1.9 W | $159.00 | 20 in stock | View | ||
| LS-CO60 | 62 x 60 mm | 7.2 W | $159.00 | 23 in stock | View | |
| LS-CO70 | 74 x 69 mm | 9.6 W | $199.00 | 27 in stock | View | |
| LS-CO80 | 80 x 80 mm | 11 W | $219.00 | 23 in stock | View | |
| LS-CO90 | 95 x 88 mm | 12 W | $269.00 | 23 in stock | View | |
| LS-CO100 | 102 x 100 mm | 14.7 W | $299.00 | 20 in stock | View | |
| LS-CO50100 | 52 x 108 mm | 15 W | $319.00 | 21 in stock | View | |
| LS-CO75120 | 75 x 120 mm | 11 W | $369.00 | 22 in stock | View | |
| LS-CO120 | 125 x 119 mm | 21.5 W | $389.00 | 21 in stock | View | |
| LS-CO130 | 132 x 130 mm | 24.8 W | $419.00 | 22 in stock | View | |
| LS-CO50130 | 52 x 133 mm | 9 W | $429.00 | 25 in stock | View | |
| LS-CO150 | 152 x 150 mm | 29.3 W | $519.00 | 23 in stock | View | |
| LS-CO170 | 172 x 170 mm | 35.8 W | $629.00 | 18 in stock | View | |
| LS-CO80180 | 80 x 180 mm | 16 W | $669.00 | 19 in stock | View | |
| LS-CO100200 | 102 x 200 mm | 17 W | $789.00 | 23 in stock | View | |
| LS-CO200250 | 202 x 252 mm | 31 W | $1,149.00 | 21 in stock | View | |
| LS-CO250260 | 33 W | $1,549.00 | 21 in stock | View |
