Coaxial lights · 7 models · from $69.00

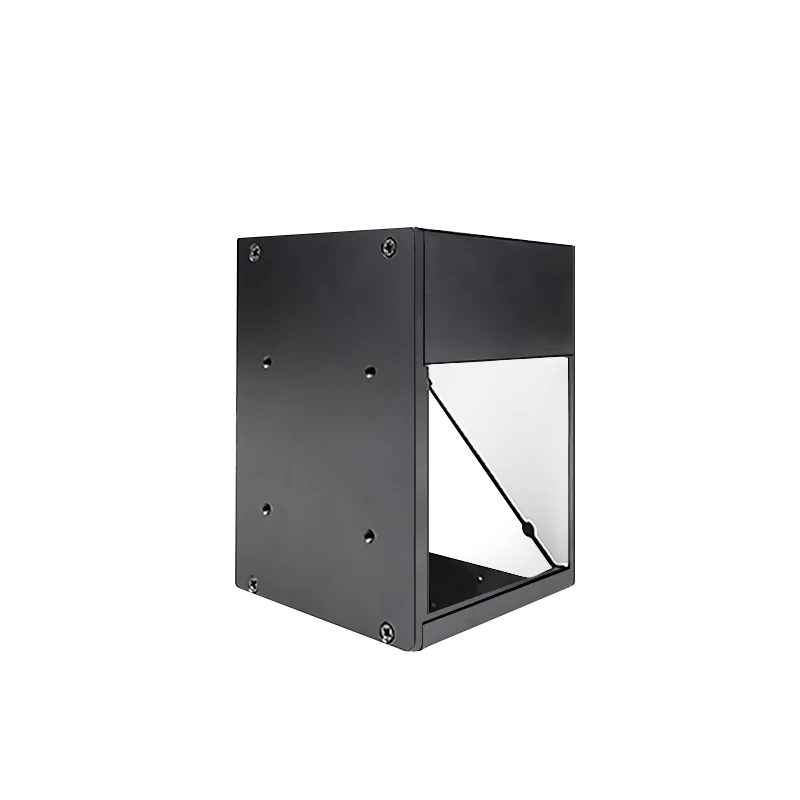

Coaxial light, standard type (CO series)
The Coaxial light, standard type (CO series) is a range of 7 coaxial lights from LumaSpec Vision, from $69.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 x 20 mm, 30 x 30 mm, 35 x 35 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm |
|---|---|
| Colour | Red, Blue, White |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Coaxial illumination through a beam splitter: in a stamped-parts example, recessed areas appear darker and are easier to identify than under standard light
- Three-colour RGB light source, luminescent surface size, wavelength/colour temperature, mounting, input wire length and light-mouth dustproof mirror customization
- Luminescent surface size: 20mm x 20mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for Mark point positioning, QR code detection,uneven surfaces and Highly reflective object scratch detection, etc.
Typical uses
- Mark point positioning
- Two-dimensional code detection
- Chip, chip breakage detection
- Screen printing positioning
- Scratch detection of metal, glass bottles and other highly reflective surface objects
- Detecting stamped parts
All 7 models in the Coaxial light, standard type (CO series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3CO2020 | 20 x 20 mm | 2.8 W | $69.00 | 10 in stock | View | |
| LS-3CO3030 | 30 x 30 mm | 4 W | $89.00 | 12 in stock | View | |
| LS-CO2.0-3535 | 35 x 35 mm | 3.4 W | $99.00 | 10 in stock | View | |
| LS-3CO4040 | 40 x 40 mm | 6 W | $109.00 | 10 in stock | View | |
| LS-CO2.0-5050 | 50 x 50 mm | 5.7 W | $129.00 | 12 in stock | View | |
| LS-3CO6060 | 60 x 60 mm | 11 W | $159.00 | 13 in stock | View | |
| LS-CO2.0-7070 | 70 x 70 mm | 11 W | $189.00 | 11 in stock | View |
