Coaxial lights · 6 models · from $89.00

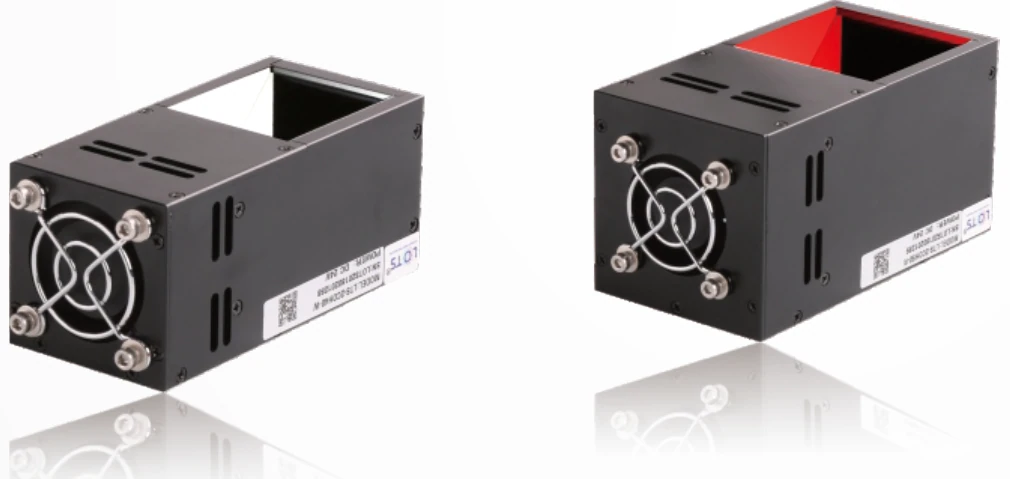

High power coaxial light (3COH)
The High power coaxial light (3COH) is a range of 6 coaxial lights from LumaSpec Vision, from $89.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 80 mm, 80 x 80 mm, 100 x 100 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Luminance 2-3 times that of a normal coaxial light, high uniformity
- For inspection of objects shot in motion or with short exposure
- Fan cooled; fan and light are powered independently
- Wire jacket covers the cable exit, anti-pull
- Compared with coaxial light LS-3COX40-W in the same test environment, LS-3COH40-W has high luminance and long life-span, suitable for shooting in motion and strobe
- Customizable: Viewport, Length and width, Combined light, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Luminance is twice to triple to the normal coaxial light, high uniformity
Typical uses
- Scratch inspection of metal or plastic surfaces
- Indentation or defect inspection of reflective surfaces
- Character or line inspection of printed circuit boards
- Inspection of surface characters on a mobile charging port
- Imaging example: edge inspection of a pad shell (LS-3COH40-W), strengthens the contour feature
- The scratch inspection of metal or plastic surface
All 6 models in the High power coaxial light (3COH)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3COH30 | 30 x 30 mm | 8.7 W | $89.00 | 12 in stock | View | |
| LS-3COH40 | 40 x 40 mm | 10.1 W | $109.00 | 13 in stock | View | |
| LS-3COH50 | 50 x 50 mm | 21.6 W | $129.00 | 10 in stock | View | |
| LS-3COH60 | 60 x 80 mm | 28.8 W | $219.00 | 14 in stock | View | |
| LS-3COH80 | 80 x 80 mm | 50.4 W | $219.00 | 17 in stock | View | |
| LS-3COH100 | 100 x 100 mm | 73.5 W | $289.00 | 13 in stock | View |
