Coaxial lights · 5 models · from $69.00

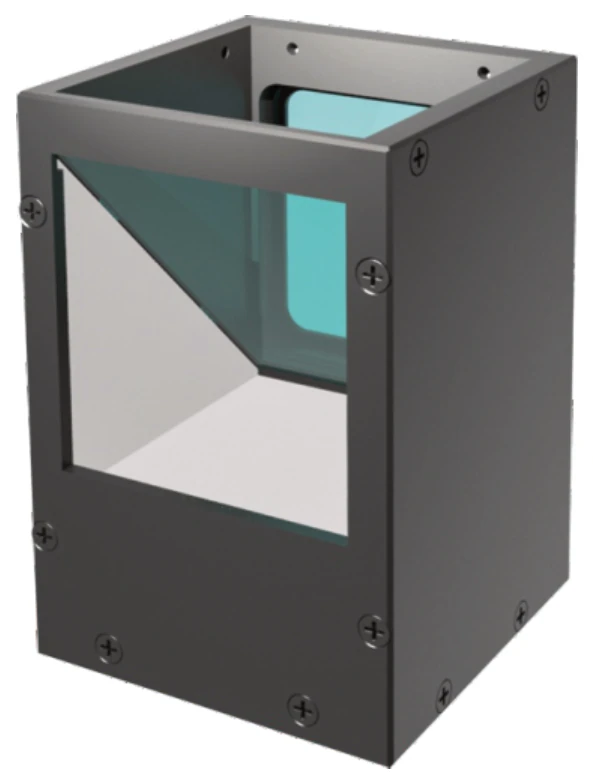

Corner coaxial light (COSC series)
The Corner coaxial light (COSC series) is a range of 5 coaxial lights from LumaSpec Vision, from $69.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 x 20 mm, 24 x 24 mm, 32 x 25 mm, 40 x 40 mm, 60 x 61 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High density LED array, high brightness, clear imaging
- Unique heat dissipation structure, improves the stability of the light source
- Special coating eliminates image ghosting effectively
- Highlights the uneven surface of the object, overcomes interference caused by surface reflection
- Changed install direction saves installation space
Typical uses
- Steel profile positioning
- QR code reading
- Metal surface defect inspection
- Webcam appearance inspection
- Circuit board mark inspection
- Various dimension measurement
All 5 models in the Corner coaxial light (COSC series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-COSC20 | 20 x 20 mm | 1.8 W | $69.00 | 12 in stock | View | |
| LS-COSC24 | 24 x 24 mm | 4.6 W | $69.00 | 15 in stock | View | |
| LS-COSC3225 | 32 x 25 mm | 4.6 W | $89.00 | 10 in stock | View | |
| LS-COSC40 | 40 x 40 mm | 5.4 W | $109.00 | 13 in stock | View | |
| LS-COSC60 | 60 x 61 mm | 7.2 W | $159.00 | 12 in stock | View |
