Coaxial lights · 4 models · from $129.00

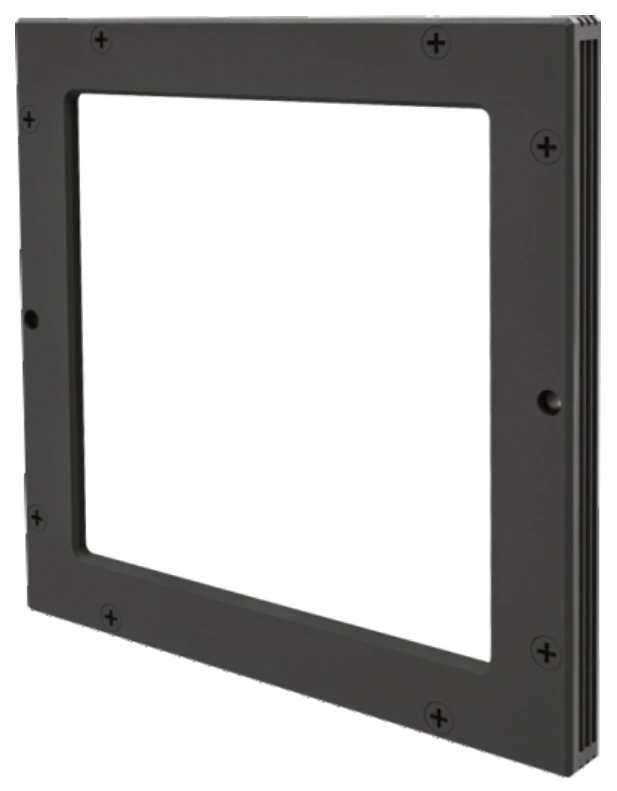

Flat coaxial light (FCS series)
The Flat coaxial light (FCS series) is a range of 4 coaxial lights from LumaSpec Vision, from $129.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 100 x 100 mm, 150 x 150 mm, 200 x 200 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Special light-guide material ensures uniform and vertical irradiation
- In some occasions it can be used instead of a coaxial light and dome light, saving installation space
- Comprehensive orientation irradiation of the product
Typical uses
- Drug packaging surface inspection
- Inspection of chromatic aberration of bottle caps
- Film surface defect inspection
- Various dimension measurement
- Liquid level inspection
- Inspection of burrs on metal parts
All 4 models in the Flat coaxial light (FCS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FCS50 | 50 x 50 mm | 3.6 W | $129.00 | 16 in stock | View | |
| LS-FCS100 | 100 x 100 mm | 11 W | $289.00 | 17 in stock | View | |
| LS-FCS150 | 150 x 150 mm | 15 W | $509.00 | 13 in stock | View | |
| LS-FCS200 | 200 x 200 mm | 22 W | $789.00 | 14 in stock | View |
