Coaxial lights

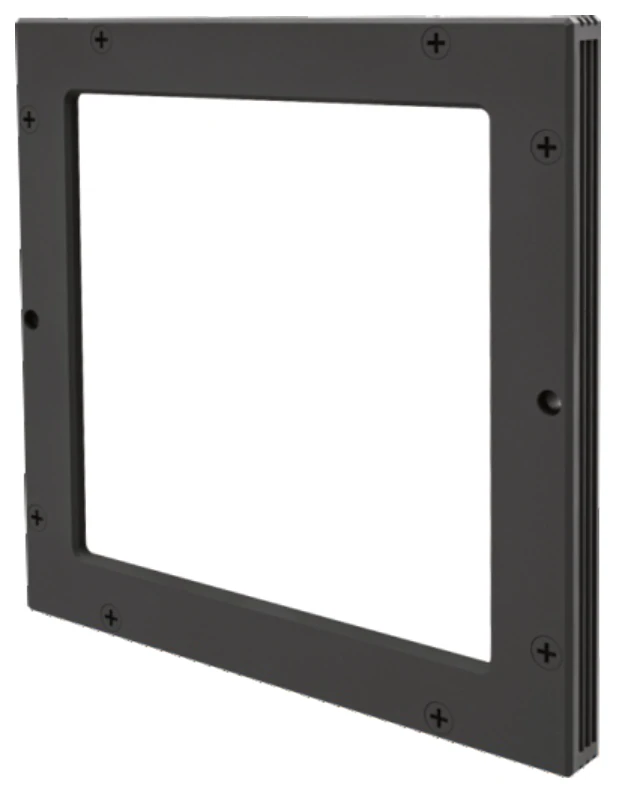

50 x 50 mm Flat coaxial light (FCS series) (LS-FCS50-R/G/B/W)
Model LS-FCS50-R/G/B/W
Flat coaxial light with a special light-guide material for uniform, vertical irradiation. In some cases it can replace a coaxial light or dome light, saving installation space.
Features
- Special light-guide material ensures uniform and vertical irradiation
- In some occasions it can be used instead of a coaxial light and dome light, saving installation space
- Comprehensive orientation irradiation of the product
Specifications
| Model | LS-FCS50-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Mounting | 4-M4 through thread, dia. 6 depth 3 (back side) (drawings) |
| Cable length | 500 mm (drawings) |
| Item | 1 |
| Power R (W) | 3.6 |
| Power G/B/W (W) | 3.6 |
| Luminous size (mm) | 50 x 50 |
| L (mm) | 90 |
| W (mm) | 90 |
| H (mm) | 10 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.25 kg |
Applications
- Drug packaging surface inspection
- Inspection of chromatic aberration of bottle caps
- Film surface defect inspection
- Various dimension measurement
- Liquid level inspection
- Inspection of burrs on metal parts
- Inspection of breakage of package material
- Uniform irradiation of uneven surfaces
- Product surface scratch and character inspection
- Uneven product contour and size inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Flat coaxial light (FCS series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-FCS100-R/G/B/W | 100 x 100 mm | 11 W | $289.00 | 13 in stock | View | |
| LS-FCS150-R/G/B/W | 150 x 150 mm | 15 W | $509.00 | 10 in stock | View | |
| LS-FCS200-R/G/B/W | 200 x 200 mm | 22 W | $789.00 | 12 in stock | View |
