Coaxial lights · 4 models · from $59.00

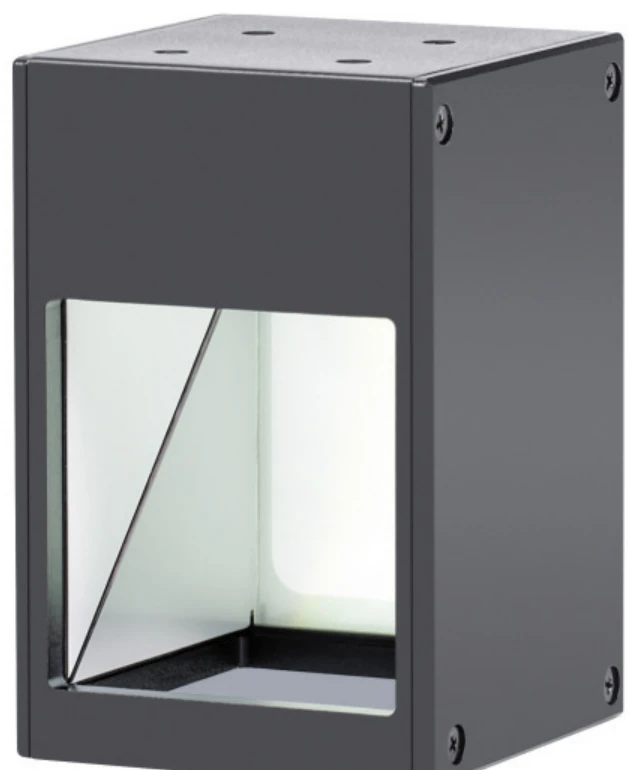

High-definition coaxial light (COS-ZT)
The High-definition coaxial light (COS-ZT) is a range of 4 coaxial lights from LumaSpec Vision, from $59.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 16 x 14.6 mm, 19 x 19 mm, 30 x 30 mm, 39 x 38 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Light path and optical design different from conventional coaxial lights
- Eliminates ghosting caused by light-path refraction and transmission
- Small field of view and high-magnification imaging stay sharp without distortion
- Can be customised to different wavelengths
Typical uses
- Phone screen positioning
- Camera module appearance inspection
- Ceramic capacitor appearance inspection
- PCB Mark positioning
- Glass surface defect inspection
- Chip edge positioning
All 4 models in the High-definition coaxial light (COS-ZT)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-COS14-R/G/B/W-ZT | 16 x 14.6 mm | 0.9 W | $59.00 | 19 in stock | View | |
| LS-COS18-R/G/B/W-ZT | 19 x 19 mm | 1.8 W | $59.00 | 12 in stock | View | |
| LS-COS30-R/G/B/W-ZT | 30 x 30 mm | 4.5 W | $89.00 | 11 in stock | View | |
| LS-COS40-R/G/B/W-ZT | 39 x 38 mm | 5.4 W | $99.00 | 17 in stock | View |
