Coaxial lights

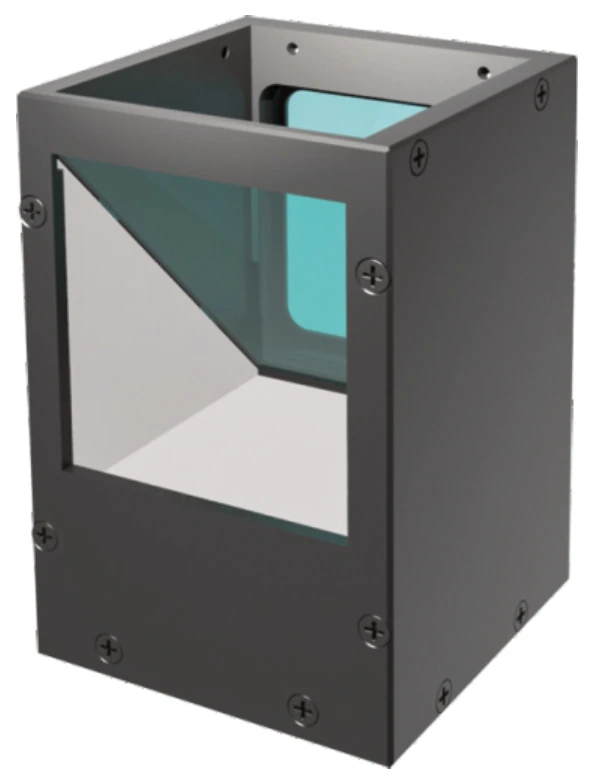

40 x 40 mm Corner coaxial light (COSC series) (LS-COSC40-R/G/B/W)
Model LS-COSC40-R/G/B/W
Corner coaxial light with a high-density LED array for high brightness and clear imaging. Its special coating eliminates image ghosting, and the camera mounts from the side to save installation space.
Features
- High density LED array, high brightness, clear imaging
- Unique heat dissipation structure, improves the stability of the light source
- Special coating eliminates image ghosting effectively
- Highlights the uneven surface of the object, overcomes interference caused by surface reflection
- Changed install direction saves installation space
Specifications
| Model | LS-COSC40-R/G/B/W |
|---|---|
| Cable length | 500 mm (drawings) |
| Window | dia. 25 mm (COSC24, COSC3225 drawings) |
| Item | 4 |
| Power R (W) | 2.7 |
| Power G/B/W (W) | 5.4 |
| Emitting area (mm) | 40 x 40 |
| L (mm) | 135 |
| W (mm) | 50 |
| H (mm) | 48 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.45 kg |
Applications
- Steel profile positioning
- QR code reading
- Metal surface defect inspection
- Webcam appearance inspection
- Circuit board mark inspection
- Various dimension measurement
- PCB copper leakage inspection
- LED lampholder positioning
- Internal character recognition of mobile phone shells
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
