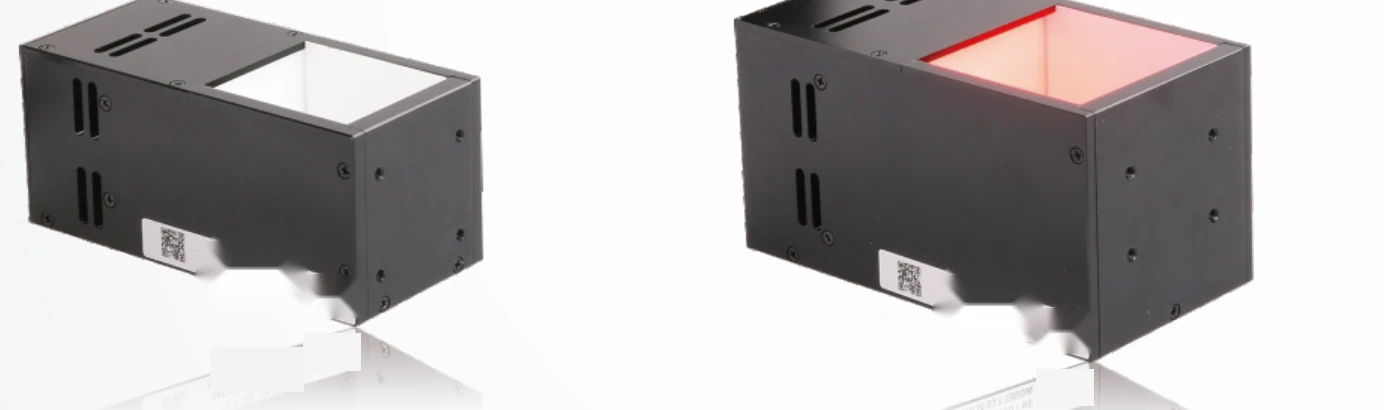

30 x 30 mm Narrow angle coaxial light (3CON) (LS-3CON30)
Model LS-3CON30
Narrow angle coaxial light (new) with high uniformity and high luminance; the light rays are approximately parallel, suited to mirror surfaces.
Features
- High uniformity, high luminance
- Light rays approximately parallel
- Suited to mirror surfaces
- Fan cooled; fan and light are powered independently
- Wire jacket covers the cable exit, anti-pull
- Compared with coaxial light LS-3COX40-W in the same test environment, LS-3CON40-W has higher luminance and gives better contrast and a steadier effect
- Customizable: Viewport, Length and width, Parallel film, Colour & colour temperature, Combined light, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-3CON30 |
|---|---|
| Voltage | 24 V |
| Min. emitting area | 20 mm x 20 mm |
| Max. emitting area | 100 mm x 100 mm |
| Recommended working distance | 5mm~300mm |
| FOV | 1mm~100mm |
| Colour temperature of white | 6600 K |
| Cooling | Fan (fan and light powered independently) |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (R) | 5.8W |
| Power (G/B/W) | 8.7W |
| Weight | 122 g |
| Common model | Y |
| Dimension drawing no. | 1 |
| Emitting surface (mm) | 30 x 30 |
Applications
- Defect inspection of reflective surfaces
- Mark position location
- Crack or scratch inspection of metal surfaces
- Edge measurement and contour inspection
- Surface character inspection of electronic components
- Imaging example: character inspection on a watch shell (LS-3CON40-W), white characters on a black background
