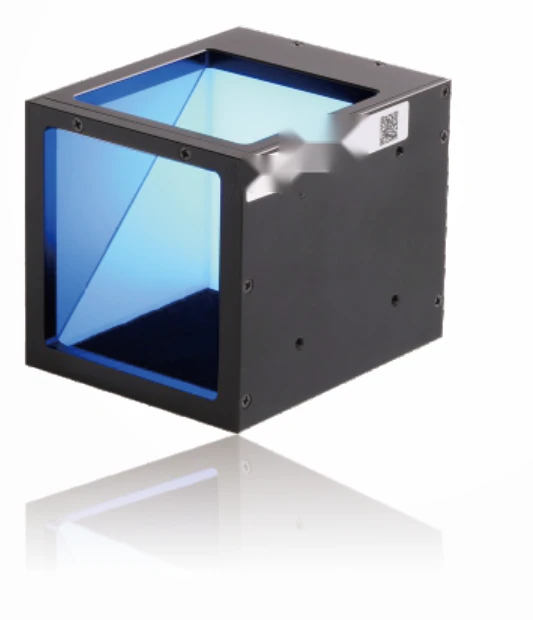

19 x 25 mm Right-angle coaxial light (COXR) (LS-COXR2520)
Model LS-COXR2520
Right-angle coaxial light: compact and space saving, with the light ray at 90 degrees to the CCD camera for a compact structure.
Features
- Compact, space saving
- 90 degrees between the light ray and the CCD camera, compact structure
- Customizable: Viewport, Length and width, Combined light, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-COXR2520 |
|---|---|
| Voltage | 24 V |
| Min. emitting area | 25 mm x 19 mm |
| Max. emitting area | 100 mm x 100 mm |
| Recommended working distance | 5mm~150mm |
| FOV | 1mm~45mm |
| Colour temperature of white | 6600 K |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (R) | 1.0W |
| Power (G/B/W) | 1.5W |
| Weight | 63 g |
| Common model | Y |
| Dimension drawing no. | 1 |
| Emitting surface (mm) | 19 x 25 |
| Viewport (mm) | 15.3 x 19.5 |
Applications
- Surface scratch inspection of bright, clear objects
- Food packing
- Imaging example: contour detection on a mobile phone shell (LS-COXR40-W), clear uniform image strengthens the edge
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Right-angle coaxial light (COXR) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-COXR30 | 27.5 x 28 mm | 2.2 W | $79.00 | 16 in stock | View | |
| LS-COXR3520 | 19 x 35 mm | 1.5 W | $99.00 | 10 in stock | View | |
| LS-COXR40 | 38 x 38 mm | 5 W | $99.00 | 15 in stock | View | |
| LS-2COXR60 | 59 x 56 mm | 7.2 W | $149.00 | 14 in stock | View | |
| LS-2COXR100 | 100 x 100 mm | 18.4 W | $289.00 | 14 in stock | View |
