Coaxial lights

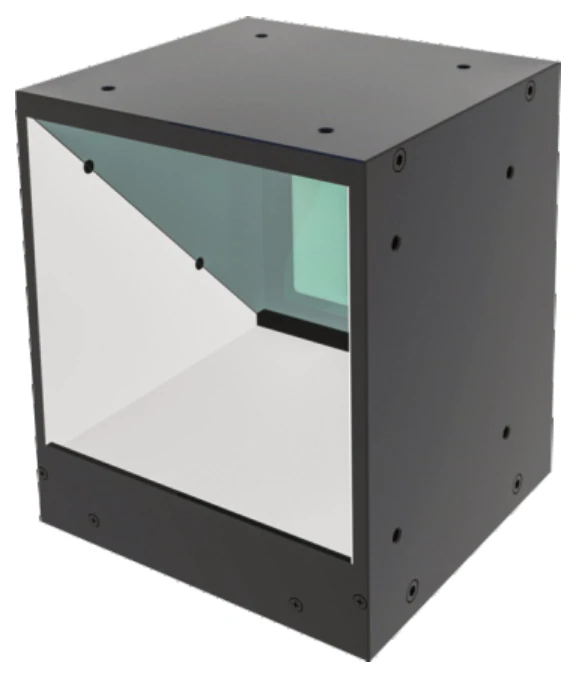

19 x 19 mm Coaxial light (COS series) (LS-COS18-R/G/B/W)
Model LS-COS18-R/G/B/W
Coaxial light with high uniformity and clear imaging; efficient heat dissipation prolongs life, and a specially coated beam splitter reduces light loss. It highlights unevenness on the object surface and eliminates reflection.
Features
- High uniformity, clear imaging
- Highly effective heat dissipation, prolonged life-span
- Reduced light loss by the beam splitter with special coating
- Highlights the unevenness on the object surface, eliminates reflection
Specifications
| Model | LS-COS18-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-APS2 series, LS-DPS2 series, SPS series (the selected controller should match the power of the light source) |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Cable length | 500 mm (drawings) |
| Item | 2 |
| Power R (W) | 0.9 |
| Power G/B/W (W) | 1.8 |
| Luminous size (mm) | 19 x 19 |
| L (mm) | 53.7 |
| W (mm) | 30 |
| H (mm) | 27 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.20 kg |
Applications
- Scratches on high-reflective surfaces, bubbles and other defects inspection
- Inspection of breakage on chip parts and silicon wafers
- LED surface defect inspection
- Mark point positioning
- QR code recognition
- Dial angle measurement
- PCB inspection
- LED lampholder positioning
- Laser marking character inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Coaxial light (COS series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-COS14-R/G/B/W | 16 x 14.6 mm | 0.9 W | $59.00 | 18 in stock | View | |
| LS-COS25-R/G/B/W | 26 x 25 mm | 2.3 W | $79.00 | 15 in stock | View | |
| LS-COS30-R/G/B/W | 30 x 30 mm | 4.5 W | $89.00 | 11 in stock | View | |
| LS-COS40-R/G/B/W | 39 x 38 mm | 6.3 W | $99.00 | 12 in stock | View | |
| LS-COS5540-R/G/B/W | 55 x 40 mm | 4.5 W | $139.00 | 10 in stock | View | |
| LS-COS60-R/G/B/W | 61 x 60 mm | 7.2 W | $159.00 | 18 in stock | View | |
| LS-COS7040-R/G/B/W | 70 x 40 mm | 9 W | $189.00 | 18 in stock | View | |
| LS-COS80-R/G/B/W | 80 x 80 mm | 14 W | $219.00 | 16 in stock | View | |
| LS-COS100-R/G/B/W | 102 x 100 mm | 22 W | $299.00 | 16 in stock | View | |
| LS-COS120-R/G/B/W | 120 x 120 mm | 27 W | $369.00 | 13 in stock | View | |
| LS-COS12065-R/G/B/W | 120 x 65 mm | 18 W | $369.00 | 14 in stock | View | |
| LS-COS140-R/G/B/W | 140 x 140 mm | 36 W | $459.00 | 8 in stock | View | |
| LS-COS180130-R/G/B/W | 180 x 130 mm | 44 W | $669.00 | 13 in stock | View |
