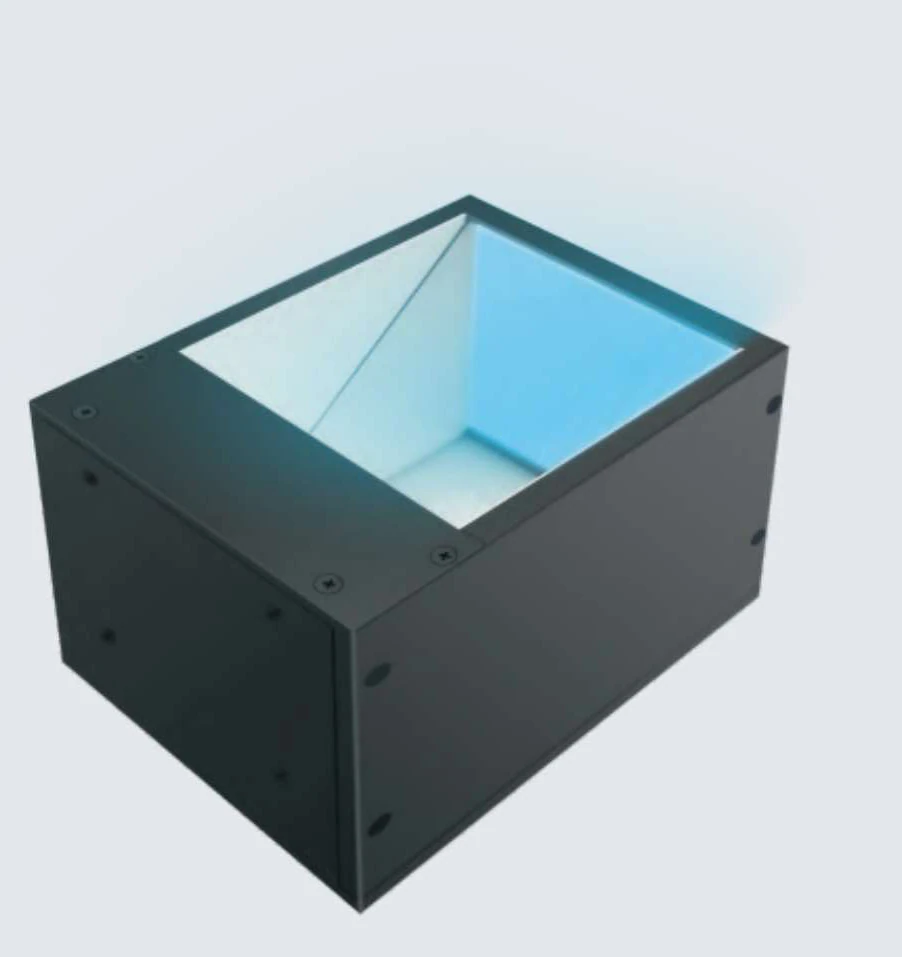

200 x 60 mm Coaxial light (HCOL) (LS-HCOL20060)
Model LS-HCOL20060
A high-density LED array emits high-intensity, even light; a semi-transparent mirror with a special coating puts the light reflected from the workpiece on the same axis as the camera, eliminating reflections (ghosting) in the image. Very even light distribution, suited to scratch inspection on mirror-finished workpiece surfaces.
Features
- Sharp imaging, high brightness, good uniformity
- Size, emitting area and mounting holes can be customised
Specifications
| Model | LS-HCOL20060 |
|---|---|
| Recommended controllers | HL-APC2424P / HL-APC2460P / HL-MDPC2480 / HL-DPC2465D (rows 1-11) |
| Cable length (mm) | 500 |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting area (mm) | 200 x 60 |
| Power, green/blue/white (W) | 16.5 |
| Power, red (W) | 12 |
| Shipping weight | 1.10 kg |
Applications
- Laser marking on wafers
- Engraved characters on metal surfaces, bearings and beverage cans
- 2D codes printed on metal and glass plates
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Coaxial light (HCOL) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-HCOL30K | 30 x 30 mm | 3.5 W | $89.00 | 12 in stock | View | |
| LS-HCOL40K | 40 x 40 mm | 5 W | $109.00 | 15 in stock | View | |
| LS-HCOL60K | 60 x 60 mm | 5 W | $159.00 | 12 in stock | View | |
| LS-HCOL80K | 80 x 80 mm | 9.5 W | $219.00 | 15 in stock | View | |
| LS-HCOL100K | 100 x 100 mm | 15 W | $289.00 | 15 in stock | View | |
| LS-HCOL120P | 120 x 120 mm | 19 W | $369.00 | 12 in stock | View | |
| LS-HCOL140P | 140 x 140 mm | 26 W | $459.00 | 11 in stock | View | |
| LS-HCOL180100 | 180 x 100 mm | 30 W | $669.00 | 14 in stock | View | |
| LS-HCOL180130 | 180 x 130 mm | 48 W | $669.00 | 16 in stock | View | |
| LS-HCOL290110 | 290 x 110 mm | 76 W | $1,459.00 | 14 in stock | View | |
| LS-HCOL300200 | 300 x 200 mm | 72 W | $1,549.00 | 12 in stock | View |
