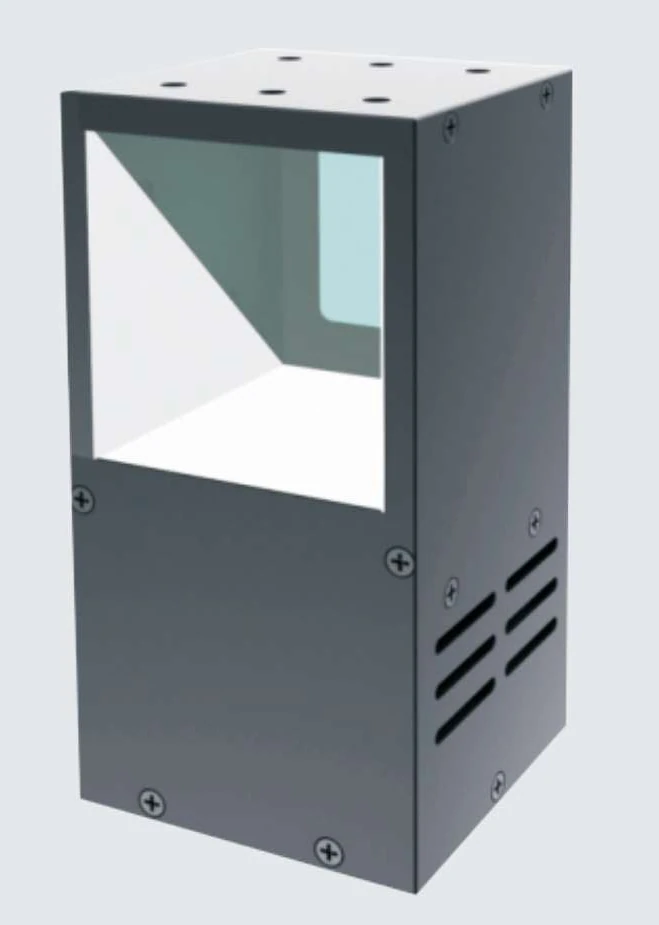

60 x 60 mm High-brightness coaxial light (HHCOL) (LS-HHCOL60)
Model LS-HHCOL60
High-brightness coaxial light using high-power SMD LEDs; brighter and more uniform than a conventional coaxial light. Because of heat dissipation it is somewhat larger than a conventional coaxial light with the same emitting area.
Features
- Observation window and beam splitter specially customised
Specifications
| Model | LS-HHCOL60 |
|---|---|
| Recommended controller | HL-DPC48150D |
| Cable length (mm) | 500 |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting area (mm) | 60 x 60 |
| Power (W) | 46.5 |
| Shipping weight | 0.60 kg |
Applications
- Dents, damage and defects on reflective surfaces
- Characters and patterns on printed circuit boards
- High-speed SMT placement
- Motor centre positioning
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High-brightness coaxial light (HHCOL) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-HHCOL40 | 40 x 40 mm | 31 W | $109.00 | 12 in stock | View | |
| LS-HHCOL80P | 80 x 80 mm | 81 W | $219.00 | 15 in stock | View | |
| LS-HHCOL100 | 100 x 100 mm | 135 W | $289.00 | 13 in stock | View |
