Fixed code readers

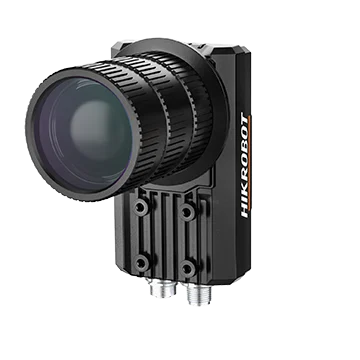

ID5000 Series Industrial Code Reader
- 89 models
- from $719.00
- Series HIK-ID5000
The ID5000 Series Industrial Code Reader is a range of 89 fixed code readers from Hikrobot, from $719.00. It comes in 47 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 3.1 MP, 1/2", 8 mm lens, 3.1 MP, 8 mm lens, 5 MP, 1/1.45", 5 MP, 1/1.45", 12 mm lens, 5 MP, 1/1.45", 16 mm lens, 5 MP, 1/1.45", 25 mm lens, 5 MP, 1/1.45", 8 mm lens, 5 MP, 16 mm lens, 5 MP, 25 mm lens, 5 MP, 8 mm lens, 5.2 MP, 1/1.7", 12 mm lens, 5.2 MP, 1/1.7", 16 mm lens, 5.2 MP, 1/1.7", 25 mm lens, 5.2 MP, 1/1.7", 8 mm lens, 5.2 MP, 12 mm lens, 5.2 MP, 16 mm lens and 31 more
- Interface
- GigE
- Resolution
- 5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
- Shutter
- Global, Rolling
- Lens mount
- M12, D14, C-mount
- Series
- ID5000 series
- Colour
- Color, Mono
- Sensor format
- 1/2", 1/1.8" - 1/1.56", 1", 1.1" - 1.2"
Features
- 6 MP rolling-shutter sensor for excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Supports TCP/IP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, Fins and other protocols
- Integrated multi-zone controllable lighting module for versatile options
- IP67 protection for harsh industrial environments
- High-performance 6 MP rolling-shutter sensor for excellent image quality
- Multiple lens mounts; optional mechanical-focus lens focuses automatically for easy setup
- Supports TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
All 89 models in the ID5000 Series Industrial Code Reader
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-IDE012X-CNN | 6 MP | 3072 ×1944 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00quote | View |
| MV-IDE012X-12MW | 6 MP, 12 mm lens | 3072 ×1944 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00quote | View |
| MV-IDE012X-25MW | 6 MP, 25 mm lens | 3072 ×1944 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00quote | View |
| MV-IDE012X-16MW | 6 MP, 16 mm lens | 3072 ×1944 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00quote | View |
| IDT5066L | 6.3 MP, 8 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $719.00 | View |
| MV-IDE012X-08MW | 6 MP, 8 mm lens | 3072 ×1944 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00quote | View |
| MV-IDE114X | 6.3 MP, 8 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $719.00 | View |
| MV-ID5050M-25S-WBN | 5.2 MP, 1/1.7", 25 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet (1000 Mbit/s) | $1,609.00 | View |
| MV-MFW560M-08S-WBN | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| MV-MFW560M-12S-WBN | 5.2 MP, 12 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| MV-MFW560M-16S-WBN | 5.2 MP, 16 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| MV-MFW560M-25S-WBN | 5.2 MP, 25 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| HIK-AJ9900/8 | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| MV-FX0500-08-HSW | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| FX-5525M-08SW | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| FX-5525M-12SW | 5.2 MP, 12 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| FX-5525M-16SW | 5.2 MP, 16 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| FX-5525M-25SW | 5.2 MP, 25 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| CY-C050M-08W | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,609.00 | View |
| MV-ID5200M-00C-NNN | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $1,639.00 | View |
| CY-C030M-08W | 3.1 MP, 8 mm lens | 2048 × 1536 | 60 fps | Gigabit Ethernet (1000 Mbit/s) | $1,709.00 | View |
| FX-5526M-12W | 6.3 MP, 12 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,759.00 | View |
| FX-5526M-16W | 6.3 MP, 16 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,759.00 | View |
| FX-5526M-25W | 6.3 MP, 25 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,759.00 | View |
| MV-WY-ID16W-SY | 6.3 MP | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,759.00quote | View |
| MV-LM915-WR8 | 6.3 MP | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,759.00 | View |
| MV-FX0600 | 6.3 MP, 25 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,759.00 | View |
| CY-C060M-08W | 6.3 MP, 8 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,759.00 | View |
| IA-IDC-600-08S- WBN | 6.6 MP, 8 mm lens | 3172 × 2088 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,809.00 | View |
| CT-IDC0600-08S-WBN | 6.6 MP, 8 mm lens | 3172 × 2088 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,809.00 | View |
| MV-ID5030M | 3.1 MP, 1/2", 8 mm lens | 2048 × 1536 | 60 fps | GigE | $1,969.00 | View |
| MV-ID5050M-08S-WBN | 5.2 MP, 1/1.7", 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050M-12S-WBN | 5.2 MP, 1/1.7", 12 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050M-16S-WBN | 5.2 MP, 1/1.7", 16 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-08M-RBN | 5 MP, 1/1.45", 8 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-12M-RBN | 5 MP, 1/1.45", 12 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-16M-RBN | 5 MP, 1/1.45", 16 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-25M-RBN | 5 MP, 1/1.45", 25 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-08L-RBN | 5 MP, 1/1.45", 8 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-12L-RBN | 5 MP, 1/1.45", 12 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-16L-RBN | 5 MP, 1/1.45", 16 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-00C-NNN | 5 MP, 1/1.45" | 2432 × 2048 | 92 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-12S-WBN | 6.3 MP, 1/1.8", 12 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-16S-WBN | 6.3 MP, 1/1.8", 16 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-25S-WBN | 6.3 MP, 1/1.8", 25 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-00C-NNN | 6.3 MP, 1/1.8" | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-08M-RBN | 12.4 MP, 8 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-12M-RBN | 12.4 MP, 12 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-16M-RBN | 12.4 MP, 16 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-25M-RBN | 12.4 MP, 25 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-08L-RBN | 12.4 MP, 8 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-12L-RBN | 12.4 MP, 12 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-16L-RBN | 12.4 MP, 16 mm lens | 4096 × 3024 | 10 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120M-00C-NNN | 12.6 MP, 1" | 4096 × 3072 | 28 fps | Gigabit Ethernet | $1,969.00 | View |
| MV-ID5200M | 19.8 MP | 5440 × 3648 | 20 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5200PM | 20.3 MP, 1.1" | 5120 × 3968 | 20 fps | GigE | $1,969.00 | View |
| MV-ID5200PM-00C-NNN(V2.0) | 20.3 MP, 1.1" | 5120 × 3968 | 20 fps | Gigabit Ethernet | $1,969.00 | View |
| MV-ID5250PM-00C-NNN | 26.2 MP, 1.1" | 5120 × 5120 | 15 fps | Gigabit Ethernet (1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-00C-WBN | 6.3 MP | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-08S-RBN | 6.3 MP, 8 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-12S-RBN | 6.3 MP, 12 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-16S-RBN | 6.3 MP, 16 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5060M-25S-RBN | 6.3 MP, 25 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5200PM-00C-NNN | 19.7 MP | 5120×3840 | 20 fps | Fast Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID50Y-8W | 5.2 MP, 8 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID50Y-12W | 5.2 MP, 12 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID50Y-16W | 5.2 MP, 16 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID50Y-25W | 5.2 MP, 25 mm lens | 2560 × 2048 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120XM-00C-NNN | 12.6 MP | 4096 × 3072 | 40 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-08M-XBN | 5 MP, 8 mm lens | 2432 × 2048 | 60 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5120RM-00C-NNN | 12.4 MP | 4096 × 3024 | 30 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-16M-BVS | 5 MP, 16 mm lens | 2432 × 2048 | 60 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| MV-ID5050XM-25M-BVS | 5 MP, 25 mm lens | 2432 × 2048 | 60 fps | Gigabit Ethernet(1000 Mbit/s) | $1,969.00 | View |
| CY-C050XM-08MR | 5 MP, 8 mm lens | 2432 × 2048 | 92 fps | Gigabit Ethernet(1000 Mbit/s) | $1,979.00 | View |
| MV-ID5060M-08S-WBN | 6.3 MP, 1/1.8", 8 mm lens | 3072 × 2048 | 30 fps | Gigabit Ethernet (1000 Mbit/s) | $2,109.00 | View |
| GF-ID8650-W | 12.6 MP | 4096 × 3072 | 28 fps | Gigabit Ethernet(1000 Mbit/s) | $2,399.00 | View |
| CY-C120M-CNN | 12.6 MP | 4096 × 3072 | 28 fps | Gigabit Ethernet(1000 Mbit/s) | $2,399.00 | View |
| MV-MFW5200P-00CN | 19.7 MP | 5120×3840 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,459.00 | View |
| MV-WY-ID370WE-SY | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,469.00 | View |
| MV-FX2000-00-BCN | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,469.00 | View |
| CT-IDN0121-00C-NNN | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,469.00 | View |
| MV-FX5000-01 | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,469.00 | View |
| FX-ID5200-PNG-CS | 19.8 MP | 5440 × 3648 | 20 fps | Gigabit Ethernet (1000 Mbit/s) | $2,469.00 | View |
| CY-C200M-CNN | 19.8 MP | 5440 × 3648 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,469.00 | View |
| MV-WY-ID450E-SY | 20.3 MP | 5120 × 3968 | 20 fps | Fast Ethernet(1000 Mbit/s) | $2,499.00 | View |
| FX-5250M | 26.2 MP | 5120×5120 | 15 fps | Gigabit Ethernet(1000 Mbit/s) | $2,839.00quote | View |
| CY-C250PM-CNN | 26.2 MP | 5120×5120 | 15 fps | Gigabit Ethernet(1000 Mbit/s) | $2,839.00quote | View |
| VZ-5525C | 26.2 MP | 5120×5120 | 15 fps | Gigabit Ethernet(1000 Mbit/s) | $2,839.00quote | View |
| MV-ID6525PM-00C-NNN | 26.2 MP | 5120×5120 | 15 fps | Gigabit Ethernet(1000 Mbit/s) | $5,689.00quote | View |
