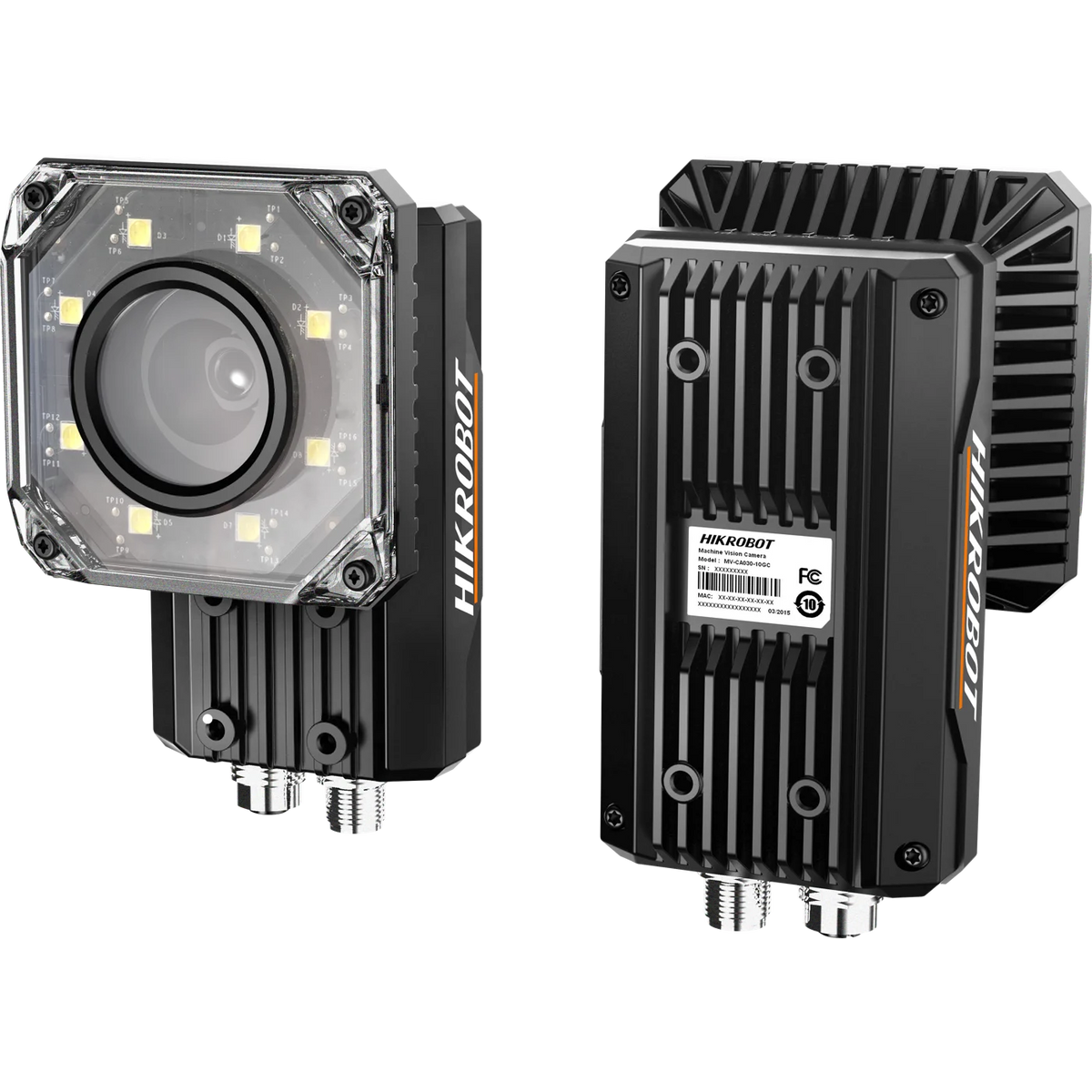

Hikrobot MV-ID5060M-00C-NNN C-mount lens 6MP Allfunction Industrial Code Reader, no light

Fixed code readers

Hikrobot MV-ID5060M-16S-WBN 16mm Mechanical Autofocus lens 6MP Allfunction Industrial Code Reader

Model MV-ID5060M-16S-WBNHikrobot

Resolution3072 × 2048
SensorCMOS, rolling shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed30 fps
Lens mountM12
Mono / colourMono

$1,969.00

Ships in 2-3 weeks

0.83 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ID5060M-16S-WBN 16mm Mechanical Autofocus lens 6MP Allfunction Industrial Code Reader. Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images. Adopts built-in deep learning algorithm to read codes with good robustness.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID5060M-16S-WBN
Brand	Hikrobot
Lens cap	Transparent lens cap. Polarization lens cap is optional.
Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).

Optics

Focal length	16 mm (0.6")

Sensor and imaging

Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11; 2-dimensional codes: QR Code, Data Matrix; Stack codes: PDF 417
Max. frame rate	30 fps
Max. reading speed	90 codes/sec
Sensor type	CMOS, rolling shutter
Pixel size	2.4 μm × 2.4 μm
Sensor size	1/1.8"
Resolution	3072 × 2048
Exposure time	16 μs to 1 sec
Gain	0 dB to 40 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Client software	IDMVS

Light

Light source	White light. Red, blue, or infrared light is optional.

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (non-condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	20 W @ 24 VDC (light source is enabled)

Mechanical

Lens mount	M12-mount, mechanical autofocus lens

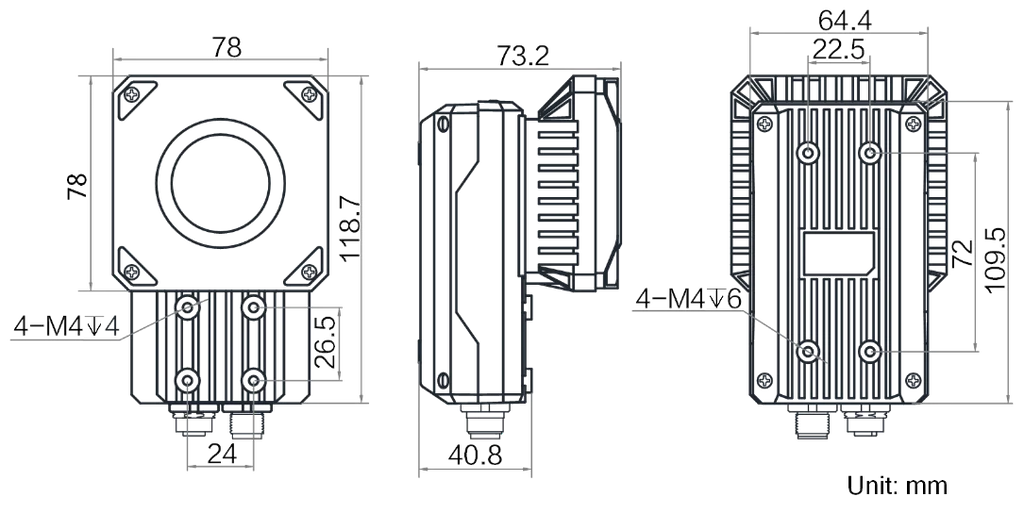

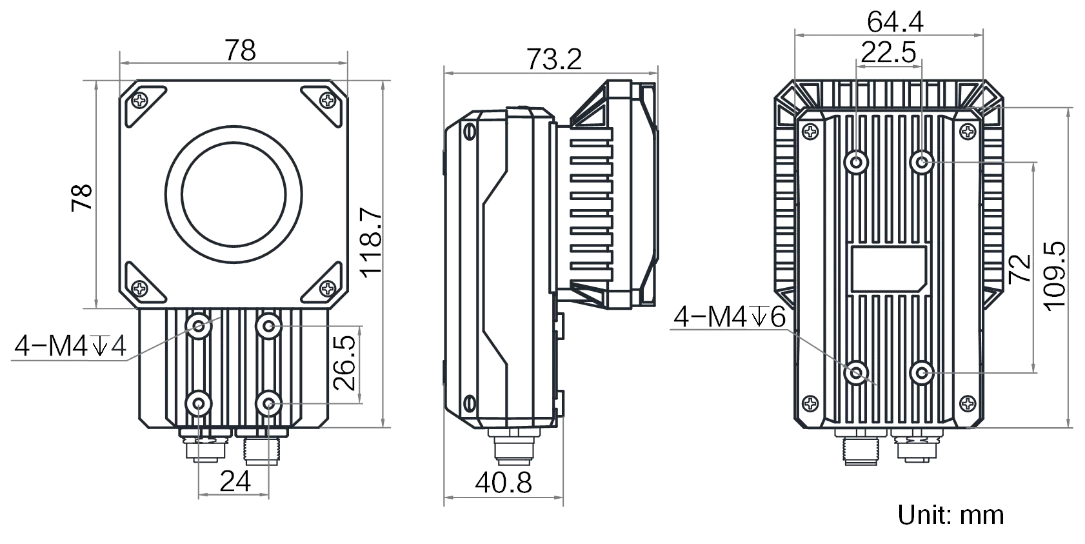

Dimension	118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9")
Weight	Approx. 520 g (1.1 lb.)
Shipping weight (estimated)	0.83 kg

Downloads

Features

Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images.
Adopts built-in deep learning algorithm to read codes with good robustness.
Provides different lens mounts with optional mechanical autofocus lens to achieve automatic focusing.
Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, and Fins.
Adopts controllable light source design providing diversified light.
Ingress protection rating 67.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the ID5000 Series Industrial Code Reader series

See all 96 models

Model	Size / key data	Price	Availability	Link
MV-ID5050M-08S-WBN	5.2 MP, 1/1.7", 8 mm lens	$1,969.00	2 in stock	View
MV-ID5050M-12S-WBN	5.2 MP, 1/1.7", 12 mm lens	$1,969.00	5 in stock	View
MV-ID5050M-16S-WBN	5.2 MP, 1/1.7", 16 mm lens	$1,969.00	3 in stock	View
MV-ID5050XM-08M-RBN	5 MP, 1/1.45", 8 mm lens	$1,969.00	5 in stock	View
MV-ID5050XM-12M-RBN	5 MP, 1/1.45", 12 mm lens	$1,969.00	3 in stock	View
MV-ID5050XM-16M-RBN	5 MP, 1/1.45", 16 mm lens	$1,969.00	3 in stock	View
MV-ID5050XM-25M-RBN	5 MP, 1/1.45", 25 mm lens	$1,969.00	3 in stock	View
MV-ID5050XM-08L-RBN	5 MP, 1/1.45", 8 mm lens	$1,969.00	5 in stock	View
MV-ID5050XM-12L-RBN	5 MP, 1/1.45", 12 mm lens	$1,969.00	4 in stock	View
MV-ID5050XM-16L-RBN	5 MP, 1/1.45", 16 mm lens	$1,969.00	3 in stock	View
MV-ID5050XM-00C-NNN	5 MP, 1/1.45"	$1,969.00	3 in stock	View
MV-ID5060M-12S-WBN	6.3 MP, 1/1.8", 12 mm lens	$1,969.00	5 in stock	View
MV-ID5060M-25S-WBN	6.3 MP, 1/1.8", 25 mm lens	$1,969.00	5 in stock	View
MV-ID5060M-00C-NNN	6.3 MP, 1/1.8"	$1,969.00	5 in stock	View
MV-ID5120RM-08M-RBN	12.4 MP, 8 mm lens	$1,969.00	3 in stock	View
MV-ID5120RM-12M-RBN	12.4 MP, 12 mm lens	$1,969.00	2 in stock	View
MV-ID5120RM-16M-RBN	12.4 MP, 16 mm lens	$1,969.00	4 in stock	View
MV-ID5120RM-25M-RBN	12.4 MP, 25 mm lens	$1,969.00	5 in stock	View
MV-ID5120RM-08L-RBN	12.4 MP, 8 mm lens	$1,969.00	3 in stock	View
MV-ID5120RM-12L-RBN	12.4 MP, 12 mm lens	$1,969.00	5 in stock	View
MV-ID5120RM-16L-RBN	12.4 MP, 16 mm lens	$1,969.00	5 in stock	View
MV-ID5120M-00C-NNN	12.6 MP, 1"	$1,969.00	3 in stock	View
MV-ID5200M	19.8 MP	$1,969.00	4 in stock	View
MV-ID5200PM	20.3 MP, 1.1"	$1,969.00	3 in stock	View
