Hikrobot MV-ID5200PM Industrial Code Reader
Model MV-ID5200PMHikrobot
- Resolution5120 × 3968
- SensorCMOS, global shutter
- InterfaceGigE
- Speed20 fps
- Lens mountC-mount
- Mono / colourMono
$1,969.00
Ships in 2-3 weeks
0.76 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-ID5200PM Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts CMOS global shutter sensor to provide high quality images.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-ID5200PM |
|---|---|
| Brand | Hikrobot |
| Lens cap | Transparent lens cap |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
Sensor and imaging
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11; 2-dimensional codes: QR Code, Data Matrix; Stack codes: PDF 417 |
|---|---|
| Max. frame rate | 20 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.5 µm × 2.5 µm |
| Sensor size | 1.1" |
| Resolution | 5120 × 3968 |
| Exposure time | 16 μs to 0.5 sec |
| Gain | 0 dB to 2.5 dB |
| Mono/color | Mono |
Interfaces and I/O
| Client software | IDMVS |
|---|---|
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP |
| Data interface | GigE |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
Light
| Light source | Not included |
|---|
Environment and compliance
| Certification | CE, FCC, RoHS, KC |
|---|---|
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
Electrical
| Power supply | 12 VDC to 24 VDC |
|---|---|
| Max. power consumption | 12 W@24 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

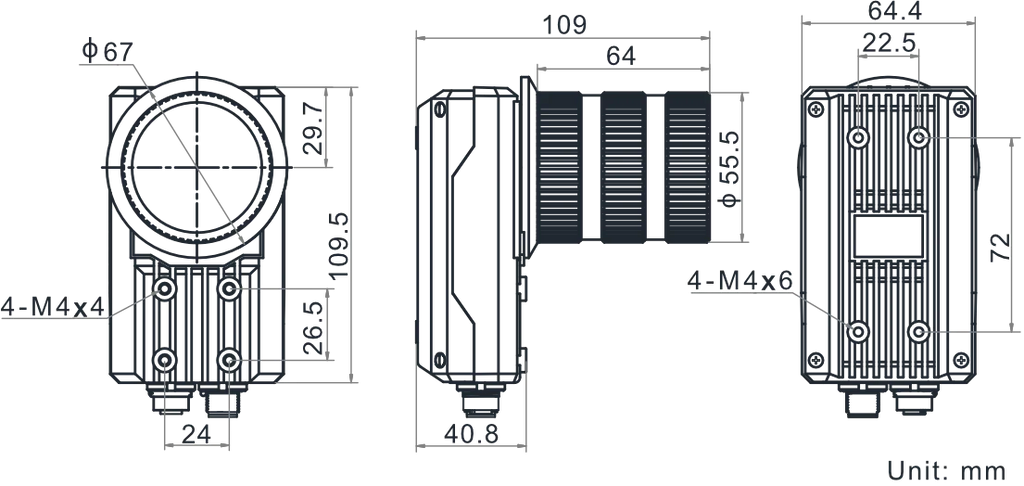

| Dimension | 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
| Weight | Approx. 470 g (1.0 lb.) |
| Shipping weight (estimated) | 0.76 kg |
Photo shows a representative model of this series; see the specifications for this model.
