Fixed code readers

Hikrobot MV-ID5060M-00C-NNN C-mount lens 6MP Allfunction Industrial Code Reader, no light

Model MV-ID5060M-00C-NNNHikrobot

Resolution3072 × 2048
SensorCMOS, rolling shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed30 fps
Lens mountC-mount
Mono / colourMono

$1,969.00

Ships in 2-3 weeks

0.66 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 8 mm lens (LS-CRD-0036)$920.00
3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 12 mm lens (LS-CRD-0037)$920.00
3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 16 mm lens (LS-CRD-0038)$920.00

Ask an engineer Browse Fixed code readers

MV-ID5060M-00C-NNN: resolution 3072 x 2048; sensor type CMOS, rolling shutter; max. frame rate 30 fps; light source Light source is not included.

Hikrobot MV-ID5060M-00C-NNN C-mount lens 6MP Allfunction Industrial Code Reader, no light. Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images. Adopts built-in deep learning algorithm to read codes with good robustness.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-ID5060M-00C-NNN
Brand	Hikrobot
Lens cap	Transparent lens cap.
Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).

Sensor and imaging

Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11; 2-dimensional codes: QR Code, Data Matrix; Stack codes: PDF 417
Max. frame rate	30 fps
Max. reading speed	90 codes/sec
Sensor type	CMOS, rolling shutter
Pixel size	2.4 μm × 2.4 μm
Sensor size	1/1.8"
Resolution	3072 × 2048
Exposure time	16 μs to 1 sec
Gain	0 dB to 40 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Client software	IDMVS

Light

Light source	Light source is not included.

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (non-condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	20 W @ 24 VDC (light source is enabled)

Mechanical

Lens mount	C-mount

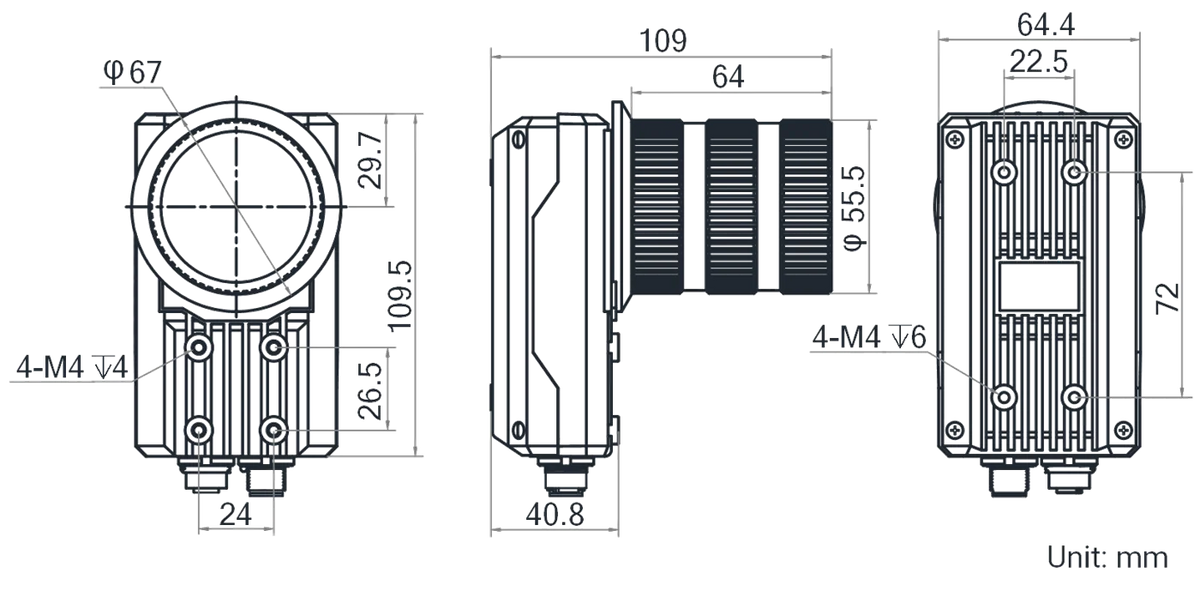

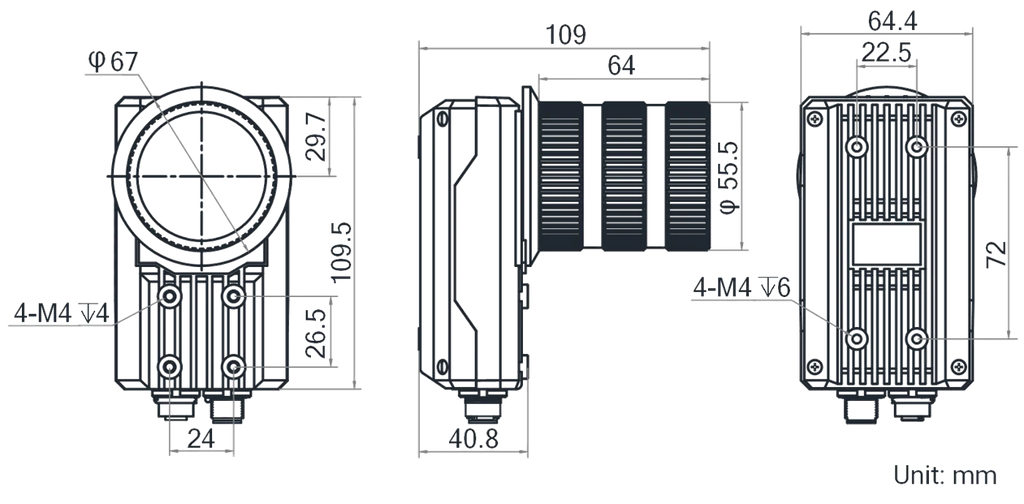

Dimension	109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
Weight	Approx. 400 g (0.9 lb.)
Shipping weight (estimated)	0.66 kg

Downloads

Features

Frame rate up to 30 fps
Exposure time 16 µs to 1 s
Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images.
Adopts built-in deep learning algorithm to read codes with good robustness.
Provides different lens mounts with optional mechanical autofocus lens to achieve automatic focusing.
Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, and Fins.
Adopts controllable light source design providing diversified light.
Ingress protection rating 67.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-ID5060M-00C-NNN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution3072 × 2048 px

Max. frame rate30 fps

Max. reading speed90 codes/s

Ingress protectionIP67

Power consumption20 Wmax. at 24 V DC

ShutterRolling

Other models in the ID5000 Series Industrial Code Reader series

See all 89 models

Model	Resolution	Sensor	Interface	Price	Availability	Link
MV-ID5060M-00C-NNNThis model	3072 × 2048	CMOS, rolling shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	Compare
MV-ID5050M-16S-WBN	2560 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-08M-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-12M-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-16M-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-25M-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-08L-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-12L-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-16L-RBN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5050XM-00C-NNN	2432 × 2048	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5060M-12S-WBN	3072 × 2048	CMOS, rolling shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5060M-16S-WBN	3072 × 2048	CMOS, rolling shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5060M-25S-WBN	3072 × 2048	CMOS, rolling shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-08M-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-12M-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-16M-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-25M-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-08L-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-12L-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120RM-16L-RBN	4096 × 3024		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5120M-00C-NNN	4096 × 3072	CMOS, global shutter	Gigabit Ethernet	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5200M	5440 × 3648		Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5200PM	5120 × 3968	CMOS, global shutter	GigE	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5200PM-00C-NNN(V2.0)	5120 × 3968	CMOS, global shutter	Gigabit Ethernet	$1,969.00	Ships in 2-3 weeks	CompareView
MV-ID5250PM-00C-NNN	5120 × 5120	CMOS, global shutter	Gigabit Ethernet (1000 Mbit/s)	$1,969.00	Ships in 2-3 weeks	CompareView
