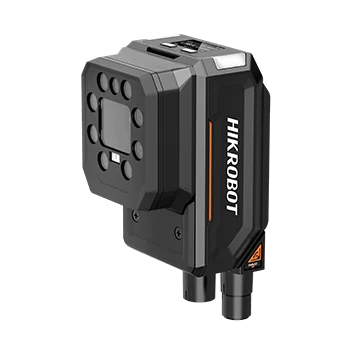

Hikrobot CY-C050XM-08MR 5 MP industrial code reader

Fixed code readers

Hikrobot MV-ID5050XM-16M-RBN Industrial Code Reader

Model MV-ID5050XM-16M-RBNHikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed92 fps
Lens mountM12
Mono / colourMono

$1,969.00

Ships in 2-3 weeks

0.67 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ID5050XM-16M-RBN Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID5050XM-16M-RBN
Brand	Hikrobot
Lens cap	Half polarization lens cap by default. Transparent and full polarization caps are optional.
Indicator	Multi-directional device body indicator

Optics

Focal length	16 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin; 2D stacked codes: PDF417, MicroPDF417
Max. frame rate	92 fps
Max. reading speed	120 codes/sec
Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.45"
Resolution	2432 × 2048
Exposure time	38 μs to 3 ms
Gain	0 dB to 37 dB
Mono/color	Mono

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s)
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.; Supports device triggering via pressing on touchscreen.
Client software	IDMVS

Light

Light source	Red light by default. White/blue/IR light is optional.

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24 ± 10% VDC
Power consumption	Avg.: 11 W @ 24 VDC (light source enabled); Max.: 36 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical focus supported
Shell material	Metal

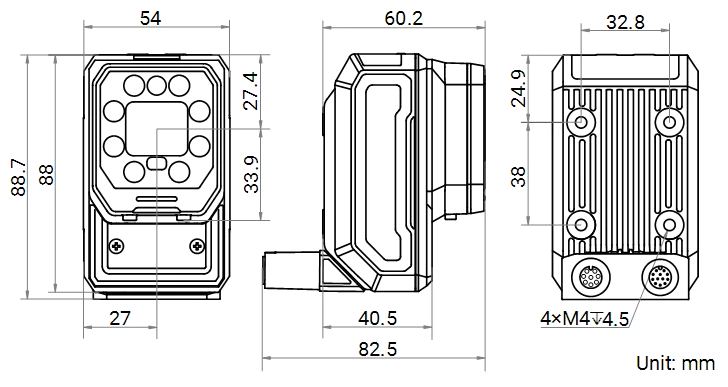

Dimension	Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4"); Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
Weight	Approx. 405 g (0.9 lb.)
Shipping weight (estimated)	0.67 kg

Downloads

Features

Adopts built-in deep learning algorithm to read codes with good robustness.
Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.
Adopts multiple indicators to show device status from different sides.
Rotatable cable design for flexible mounting.
Adopts controllable light source design to provide diversified light according to workpiece material.
Adopts I/O interfaces for input and output signals.
Supports high-precision sensors to get the installation position.
Supports broad selection of accessories, such as multi-color light source or wafer light source, for improving code-reading ability and scene adaptability.
Supports HDR function to provide high-contrast image.
Provides multiple lens mounts, such as C-mount lens, mechanical focus lens, or liquid focus lens.
