Hikrobot MV-ID5050XM-00C-NNN Industrial Code Reader

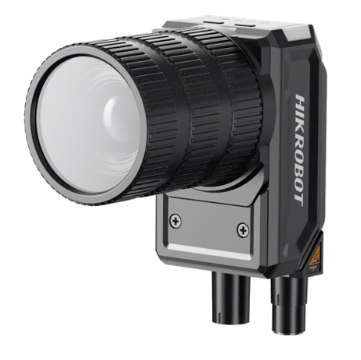

  • Hikrobot MV-ID5050XM-00C-NNN Industrial Code Reader
  • MV-ID5050XM-00C-NNN dimensions (mm)

Fixed code readers

Hikrobot MV-ID5050XM-00C-NNN Industrial Code Reader

Model MV-ID5050XM-00C-NNNHikrobot

  • Resolution2432 × 2048
  • SensorCMOS, global shutter
  • InterfaceGigabit Ethernet (1000 Mbit/s)
  • Speed92 fps
  • Lens mountC-mount
  • Mono / colourMono
$1,969.00

Ships in 2-3 weeks

0.62 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Fixed code readers

lumaspecvision.com/products/lumaspec-mv-id5050xm-00c-nnn

Fewer pixels than most of the series, for less data per frame: MV-ID5050XM-00C-NNN, the 92 fps, metal shell material version, has a 2432 x 2048 (5 MP) sensor, in the lower half of the 12 resolutions in the series.

MV-ID5050XM-00C-NNN: resolution 2432 x 2048; sensor type CMOS, global shutter; max. frame rate 92 fps; light source No built-in light source.

Hikrobot MV-ID5050XM-00C-NNN Industrial Code Reader.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-ID5050XM-00C-NNN
BrandHikrobot
Lens capTransparent lens cap
IndicatorPower indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)

Sensor and imaging

Symbologies1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin; 2D stacked codes: PDF417, MicroPDF417
Max. frame rate92 fps
Max. reading speed120 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.45"
Resolution2432 × 2048
Exposure time38 μs to 1 s
Gain0 dB to 37 dB
Mono/colorMono

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s)
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.; Supports device triggering via pressing button on device and smart tune.
Client softwareIDMVS

Light

Light sourceNo built-in light source

Environment and compliance

Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceDevice only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistanceDevice only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
CertificationCE, RoHS, KC

Electrical

Power supply24 ± 10% VDC
Power consumptionAvg.: 8 W @ 24 VDC; Max.: 14.4 W @ 24 VDC

Mechanical

Lens mountC-mount
Shell materialMetal
DimensionStraight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3"); Right angle: 88.7 mm × 54 mm × 132.4 mm (3.5" × 2.1" × 5.2")
WeightApprox. 370 g (0.8 lb.)
Shipping weight (estimated)0.62 kg

Engineering data

The MV-ID5050XM-00C-NNN at a glance

Resolution2432 × 2048 px
Max. reading speed120 codes/s
Ingress protectionIP67
Power consumption8 Wavg. at 24 V DC; max. 14.4 W
ShutterGlobal

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Cables and frame grabbers

Printed M12 connector on both parts

Printed M12 connector on both parts

Printed M12 connector on both parts

Printed M12 connector on both parts

Printed M12 connector on both parts

Printed M12 connector on both parts

Before you buy

Questions about the MV-ID5050XM-00C-NNN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which codes does the MV-ID5050XM-00C-NNN read?

The symbologies are 1D codes Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, industrial 2of5, and Pharmacode; 2D matrix codes QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin ...

How fast does the MV-ID5050XM-00C-NNN read?

The maximum reading speed is 120 codes/sec.

How does the MV-ID5050XM-00C-NNN connect?

The data interface is Gigabit Ethernet (1000 Mbit/s). The communication protocol is SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP.

What I/O does the MV-ID5050XM-00C-NNN have?

The digital I/O is a 12-pin M12 connector that provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.; Supports device triggering via pressing button on device and smart tune.

Which cables does the MV-ID5050XM-00C-NNN take?

Fit-tested: MV-IDA-P-M12A12pF-open-ST-7m (7 m), MV-IDA-P-M12A12pF-open-HF-10m (10 m), MV-IDA-P-M12A12pF-open-ST-3m (3 m), MV-IDA-P-M12A12pF-open-HF-5m (5 m) and MV-IDA-P-M12A12pF-open-ST-30m (30 m).

Other models in the ID5000 Series Industrial Code Reader series

See all 89 models in the series

How this model compares

  • Reads 120 codes/s: the fastest in the series, shared by 11 of the 89 readers.
  • Compared with MV-ID5050XM-08M-RBN: weight Approx. 370 g (0.8 lb.) here, Approx. 405 g (0.9 lb.) there.
ModelResolutionInterfaceSpeedSizePriceAvailabilityLink
MV-ID5050XM-08M-RBN2432 x 2048Gigabit Ethernet (1000 Mbit/s)92 fps5 MP, 1/1.45", 8 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5050XM-12M-RBN2432 x 2048Gigabit Ethernet (1000 Mbit/s)92 fps5 MP, 1/1.45", 12 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5050XM-16M-RBN2432 x 2048Gigabit Ethernet (1000 Mbit/s)92 fps5 MP, 1/1.45", 16 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5050XM-25M-RBN2432 x 2048Gigabit Ethernet (1000 Mbit/s)92 fps5 MP, 1/1.45", 25 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5050XM-00C-NNNThis model2432 x 2048Gigabit Ethernet (1000 Mbit/s)92 fps5 MP, 1/1.45"$1,969.00 Ships in 2-3 weeks
MV-ID5120RM-08M-RBN4096 x 3024Gigabit Ethernet (1000 Mbit/s)10 fps12.4 MP, 8 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5120RM-12M-RBN4096 x 3024Gigabit Ethernet (1000 Mbit/s)10 fps12.4 MP, 12 mm lens$1,969.00 Ships in 2-3 weeks View
MV-ID5120XM-00C-NNN4096 x 3072Gigabit Ethernet(1000 Mbit/s)40 fps12.6 MP$1,969.00 Ships in 2-3 weeks View
MV-ID5200M5440 x 3648Gigabit Ethernet (1000 Mbit/s)20 fps19.8 MP$1,969.00 Ships in 2-3 weeks View
