Hikrobot CY-C050XM-08MR 5 MP industrial code reader

Model CY-C050XM-08MRHikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceGigabit Ethernet(1000 Mbit/s)
Speed92 fps
Lens mountM12
Mono / colourMono

$1,979.00

Ships in 2-3 weeks

0.67 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot CY-C050XM-08MR 5 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	CY-C050XM-08MR
Brand	Hikrobot
Lens cap	Semi-polarizing lens cover, Clear optional, Full-polarized, Diffuse lens cover
Indicator	Multi-angle body indicators

Optics

Focal length	8 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.; 2D code: QR Code, Data Matrix, MicroQR, AZTEC, HanXin, etc.; Stacked code: PDF417, etc.
Max. frame rate	92 fps
Max. reading speed	96 codes/s
Sensor type	CMOS, global shutter
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/1.45”
Resolution	2432 × 2048
Exposure time	38 μs ~ 3 ms
Gain	0 dB ~ 37 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Data interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12 connector for power and I/O, Includes 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1 RS-232 output; Device trigger via body display and buttons supported
Client software	IDMVS

Light

Light source	Red light, White light optional, Blue or IR light

Environment and compliance

Ingress protection	IP67
Temperature	Operating temperature 0 ~ 50℃, Storage temperature: -30 to 70 ℃
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	24 VDC
Max. power consumption	12 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-mount, mechanical focusing

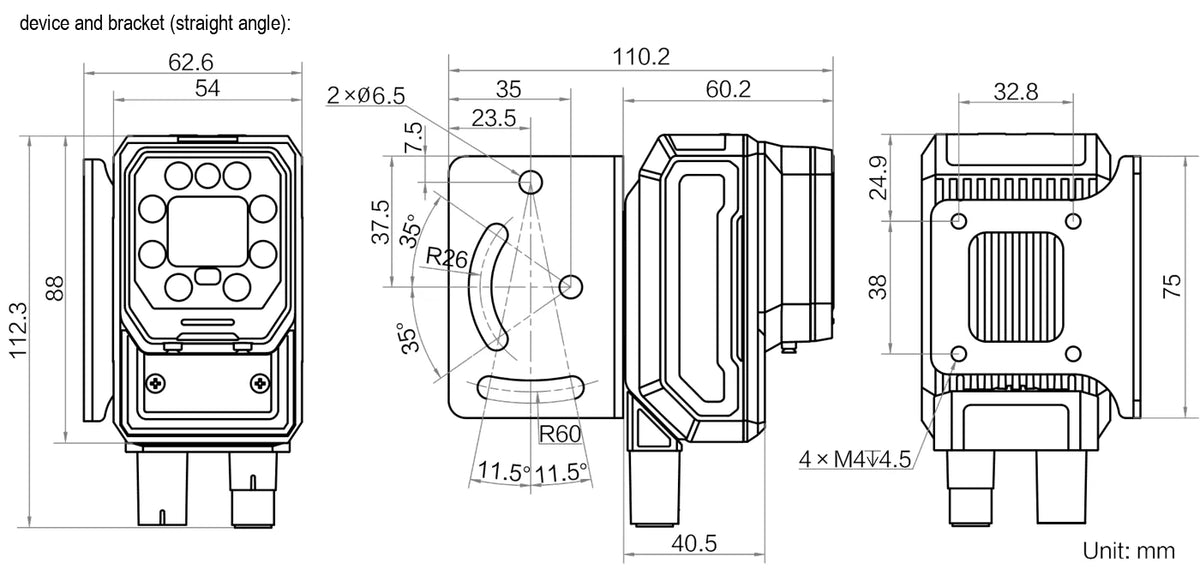

Dimension	Straight: 112.3 mm × 54 mm × 60.2 mm; Right-angle: 88.7 mm × 54 mm × 82.5 mm
Weight	Approx. 410 g
Shipping weight (estimated)	0.67 kg

Downloads

Datasheet (PDF, Chinese)CY-C050XM-08MR · 972 KB

Features

Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations
Status indicators visible from multiple sides show code-reading status at a glance
Rotatable cable exit and compact body for flexible installation in tight spaces
Multi-zone light control automatically switches to the best illumination for the workpiece material
Rich I/O interface for multiple input and output signals
Multiple high-precision sensors make it easy to replicate or restore the mounting position
Extensive accessories; some models support add-on strobe lights, multi-color lights, wafer lights and more to solve industry pain points
