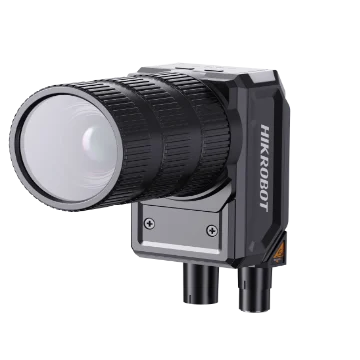

Hikrobot MV-ID5120RM-00C-NNN 12 MP resolution, C-mount lens, No lens, No light, Clear lens cover

Model MV-ID5120RM-00C-NNNHikrobot

Resolution4096 × 3024
InterfaceGigabit Ethernet(1000 Mbit/s)
Speed30 fps
Lens mountC-mount

$1,969.00

Ships in 2-3 weeks

0.53 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Fixed code readers

MV-ID5120RM-00C-NNN: resolution 4096 x 3024; sensor type Rolling shutter, Mono, 1/1.57”, 2 µm x 2 µm; max. frame rate 30 fps; light source Not included.

Hikrobot MV-ID5120RM-00C-NNN 12 MP resolution, C-mount lens, No lens, No light, Clear lens cover. 12 MP high-performance rolling-shutter sensor for fast image acquisition and excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-ID5120RM-00C-NNN
Brand	Hikrobot
Lens cap	Transparent lens cap
Indicator	Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked 2D code: PDF417, MicroPDF417
Max. frame rate	30 fps
Max. reading speed	30 codes/sec
Sensor type	Rolling shutter, Mono, 1/1.57”, 2 μm ×2 μm
Resolution	4096 × 3024
Exposure time	33 μs ~ 1 s
Gain	0 dB ~ 34 dB

Interfaces and I/O

Data interface	Gigabit Ethernet(1000 Mbit/s)
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, ModBus RTU, Fins, UDP
Digital I/O	12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output; Device trigger and one-key tuning via body button supported
Client software	IDMVS

Light

Light source	Not included

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24±10% VDC
Power consumption	Avg. power: 6 W @ 24 VDC; Max. power: 12 W @ 24 VDC

Mechanical

Lens mount	C-Mount
Shell material	Metal
Weight	Approx. 307 g

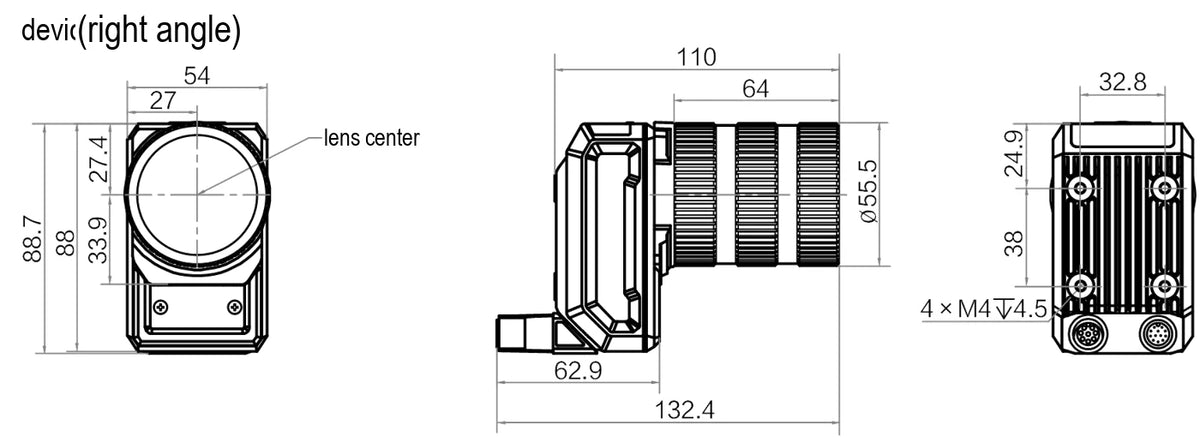

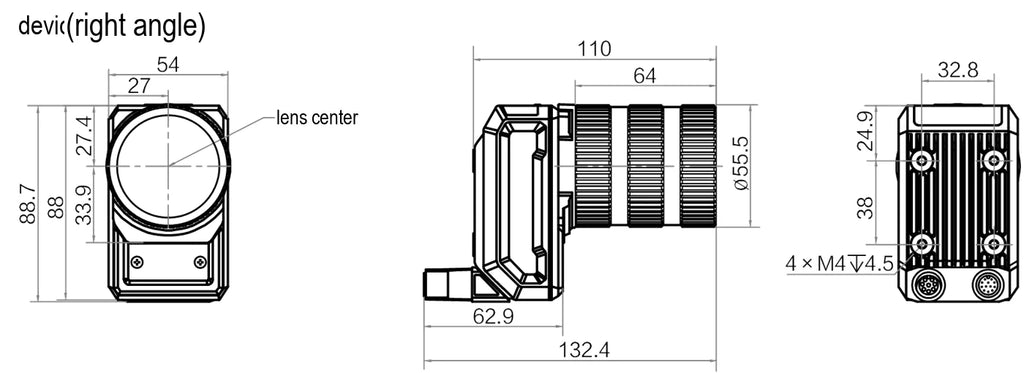

Dimension	Straight: 112.3 mm × 54 mm × 110 mm; Right-angle: 88.7 mm × 54 mm × 132.4 mm
Shipping weight (estimated)	0.53 kg

Downloads

Features

12 MP high-performance rolling-shutter sensor for fast image acquisition and excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Print-quality grading to verify barcode print quality
Supports TCP, Serial, FTP, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, FINS and other communication protocols
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-ID5120RM-00C-NNN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution4096 × 3024 px

Max. frame rate30 fps

Max. reading speed30 codes/s

Ingress protectionIP67

Power consumption6 Wavg. at 24 V DC; max. 12 W

ShutterRolling
