Fixed code readers
Hikrobot GF-ID8650-W 12 MP smart code reader
Model GF-ID8650-WHikrobot
- Resolution4096 × 3072
- SensorCMOS, global shutter
- InterfaceGigabit Ethernet(1000 Mbit/s)
- Speed28 fps
- Lens mountC-mount
- Mono / colourMono
$2,399.00
Ships in 2-3 weeks
0.76 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Available in the US - comparable cameras:
Hikrobot GF-ID8650-W 12 MP smart code reader. High-performance 12 MP global-shutter sensor for fast image capture and excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | GF-ID8650-W |
|---|---|
| Brand | Hikrobot |
| Lens cap | Transparent lens cap |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2 |
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA; UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
|---|---|
| Max. frame rate | 28 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1” |
| Resolution | 4096 × 3072 |
| Exposure time | 60 μs ~ 1 sec |
| Gain | 0 dB ~ 18 dB |
| Mono/color | Mono |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP |
|---|---|
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output |
| Client software | IDMVS |
Light
| Light source | Not included |
|---|
Environment and compliance
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, FCC, RoHS, KC |
Electrical
| Power supply | 12 VDC ~ 24 VDC |
|---|---|
| Max. power consumption | 12 W@24 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|

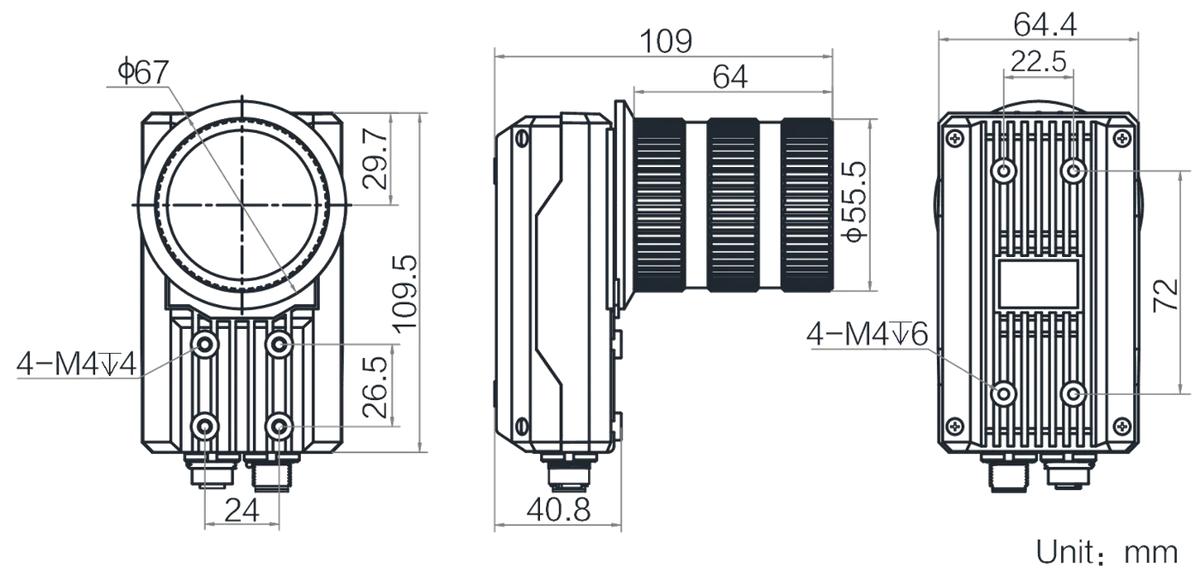

| Dimension | 109.5 mm × 64.4 mm × 109 mm |
| Weight | Approx. 470 g (1.0 lb.) |
| Shipping weight (estimated) | 0.76 kg |
