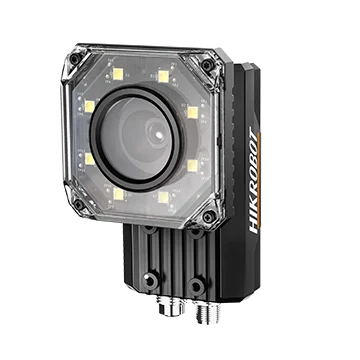

Hikrobot IA-IDC-600-08S- WBN 6 MP smart code reader

Fixed code readers

Hikrobot IDT5066L 8 mm manual-focus lens, 6 MP full-featured industrial code reader

Model IDT5066LHikrobot

Resolution3072 × 2048
SensorCMOS, Rolling shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed30 fps
Lens mountM12
Mono / colourMono

$719.00

Ships in 2-3 weeks

0.83 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot IDT5066L 8 mm manual-focus lens, 6 MP full-featured industrial code reader. High-performance 6 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	IDT5066L
Brand	Hikrobot
Lens cap	Clear lens cover, Polarizing lens cover optional
Indicator	Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2

Optics

Focal length	8 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc.
Max. frame rate	30 fps
Max. reading speed	90 codes/s
Sensor type	CMOS, Rolling shutter
Pixel size	2.4 µm × 2.4 µm
Sensor size	1/1.8”
Resolution	3072 × 2048
Exposure time	16 μs ~ 1 sec
Gain	0 dB ~ 40 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, PROFINET, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Client software	IDMVS

Light

Light source	White light, Red light optional, Blue or IR light

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, FCC, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	20 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-Mount, Mechanical focus adjustable

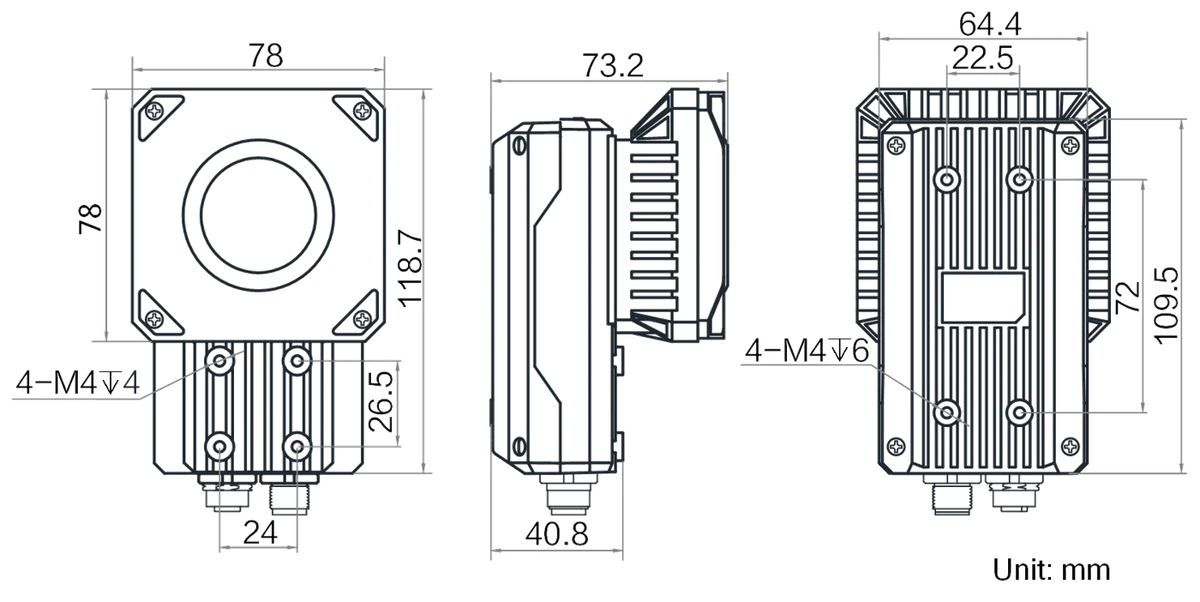

Dimension	118.7 mm × 78 mm × 73.2 mm
Weight	Approx. 520 g (1.1 lb.)
Shipping weight (estimated)	0.83 kg

Downloads

Datasheet (PDF, Chinese)IDT5066L · 1.1 MB

Features

High-performance 6 MP rolling-shutter sensor for excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Multiple lens mounts; optional mechanical-focus lens focuses automatically for easy setup
Supports TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
Integrated multi-zone controllable lighting module for versatile options
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
