Hikrobot FX-5526M-12W 6 MP smart code reader
Model FX-5526M-12WHikrobot
- Resolution3072 × 2048
- SensorCMOS, Rolling shutter
- InterfaceGigabit Ethernet (1000 Mbit/s)
- Speed30 fps
- Lens mountM12
- Mono / colourMono
$1,759.00
Ships in 2-3 weeks
0.83 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot FX-5526M-12W 6 MP smart code reader. High-performance 6 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | FX-5526M-12W |
|---|---|
| Brand | Hikrobot |
| Lens cap | Clear lens cover, Optional polarizing lens cover |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2 |
Optics
| Focal length | 12 mm |
|---|
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
|---|---|
| Max. frame rate | 30 fps |
| Max. reading speed | 90 codes/s |
| Sensor type | CMOS, Rolling shutter |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8” |
| Resolution | 3072 × 2048 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 dB ~ 40 dB |
| Mono/color | Mono |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, PROFINET, Ethernet/IP, MELSEC, Fins, ModBus, SLMP |
|---|---|
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Client software | IDMVS |
Light
| Light source | White light, Red light optional, Blue or IR light |
|---|
Environment and compliance
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, FCC, RoHS |
Electrical
| Power supply | 24 VDC |
|---|---|
| Max. power consumption | 20 W @ 24 VDC (built-in fill light on) |
Mechanical
| Lens mount | M12-Mount, Mechanical focus adjustable |
|---|---|

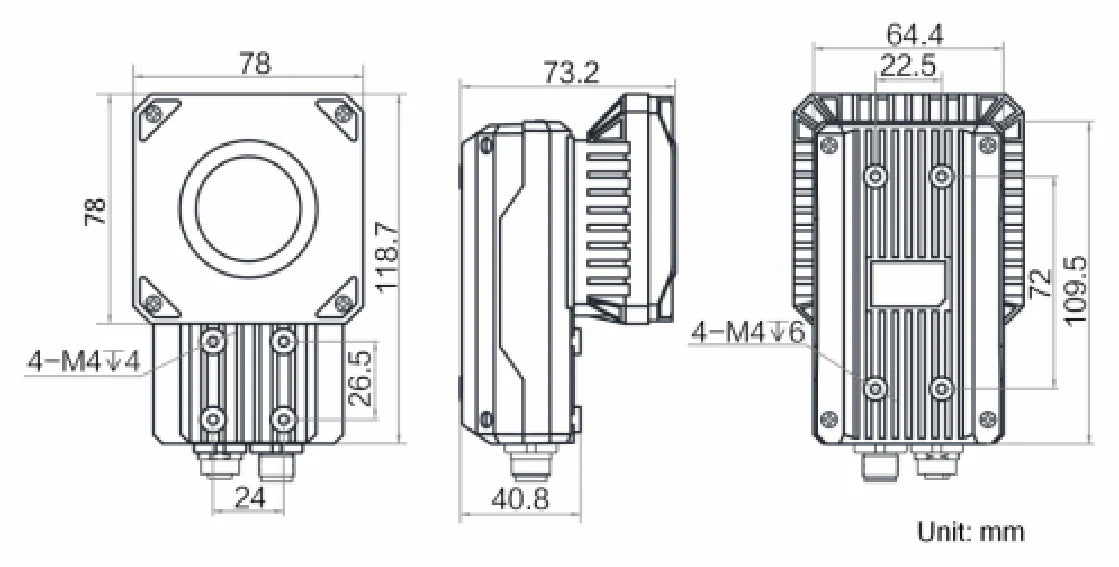

| Dimension | 118.7 mm × 78 mm × 73.2 mm |
| Weight | Approx. 520 g (1.1 lb.) |
| Shipping weight (estimated) | 0.83 kg |

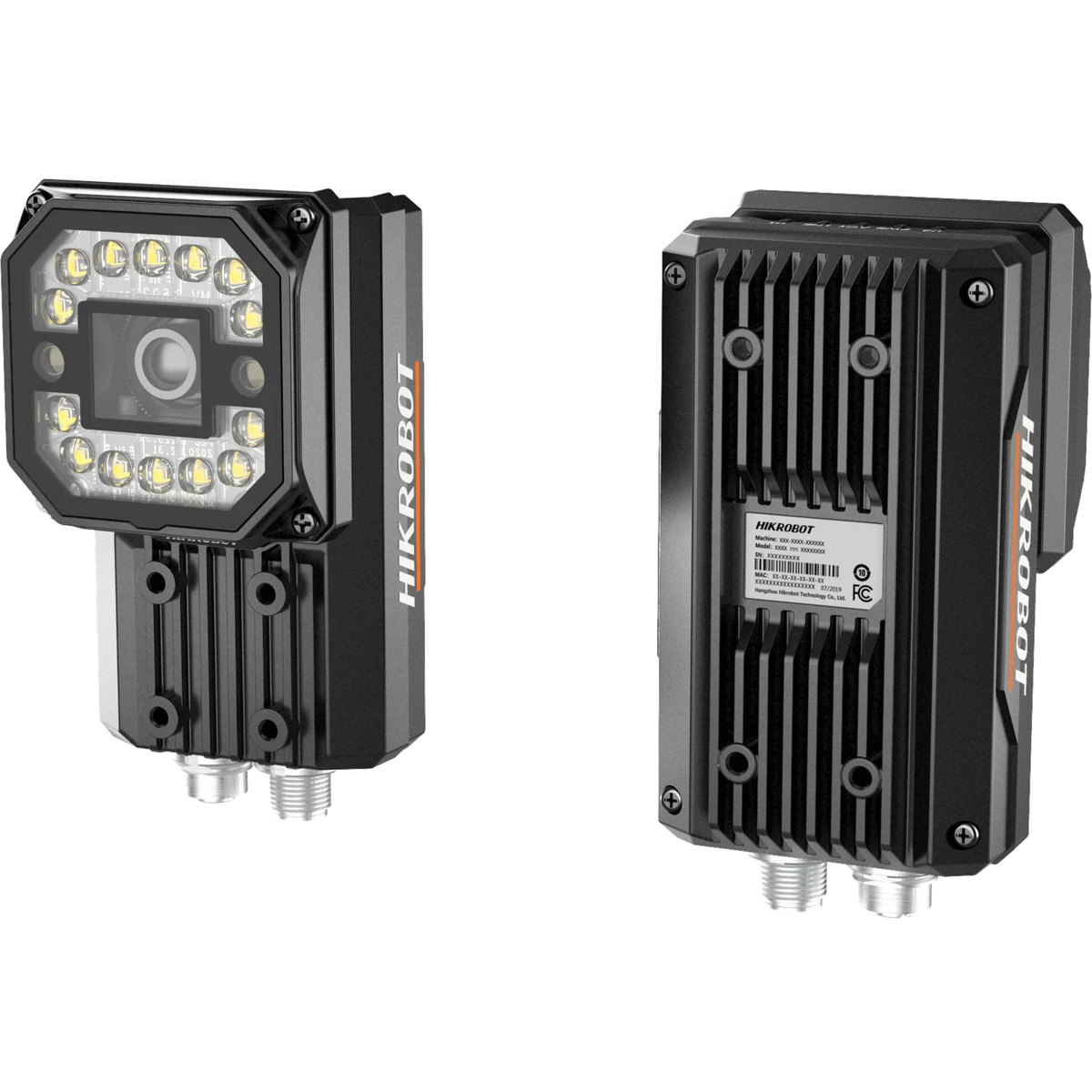

Photo shows a representative model of this series; see the specifications for this model.
