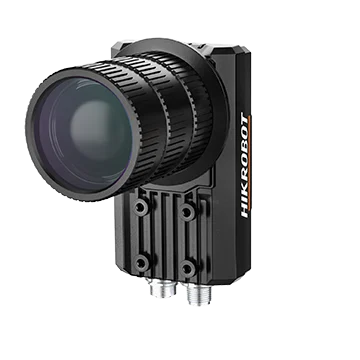

Hikrobot MV-IDE012X-CNN ID5060 industrial code reader, C-mount

Model MV-IDE012X-CNNHikrobot

Resolution3072 ×1944
InterfaceGigabit Ethernet(1000 Mbit/s)
Speed30 fps
Lens mountC-mount

$719.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.66 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDE012X-CNN ID5060 industrial code reader, C-mount. 6 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDE012X-CNN
Brand	Hikrobot
Lens cap	Transparent lens cap
Indicator	Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc.
Max. frame rate	30 fps
Max. reading speed	90 codes/s
Sensor type	Rolling shutter, Mono, 1/1.8”, 2.4 μm × 2.4 μm
Resolution	3072 ×1944
Exposure time	16 μs ~ 1 sec
Gain	0 dB ~ 40 dB

Interfaces and I/O

Data interface	Gigabit Ethernet(1000 Mbit/s)
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, FINS
Digital I/O	12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 0/1/2), 1× RS-232 input, 1× RS-232 output
Client software	IDMVS

Light

Light source	Not included

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Power consumption	Avg. power: 18 W @ 24 VDC (built-in light on); Max. power: 20 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	C-Mount
Shell material	Metal

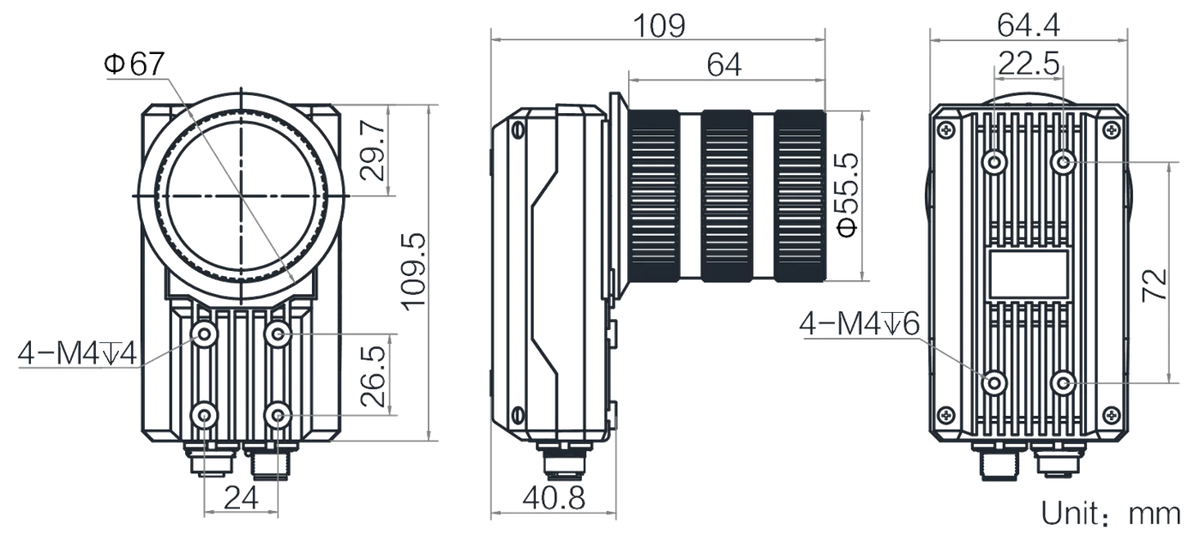

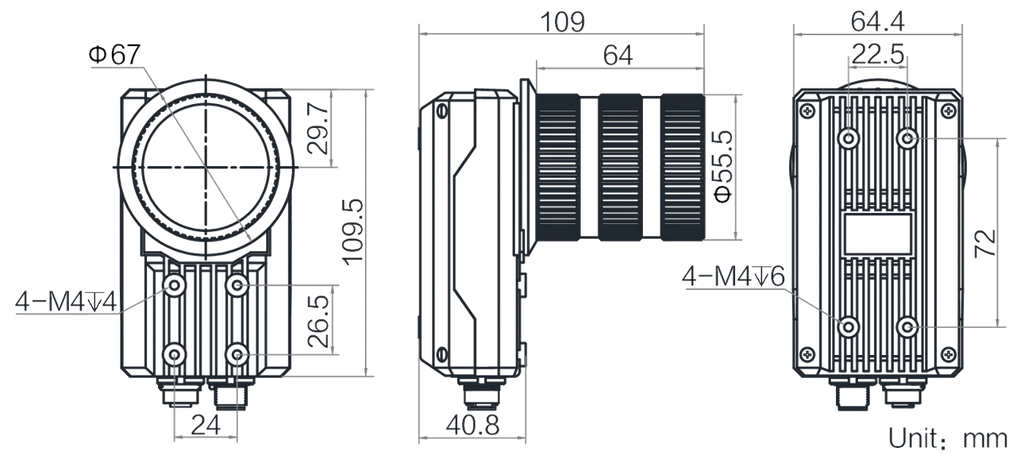

Dimension	109.5 mm × 64.4 mm × 109 mm
Weight	Approx. 400 g
Shipping weight (estimated)	0.66 kg

Downloads

Features

6 MP rolling-shutter sensor for excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Supports TCP/IP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, Fins and other protocols
Integrated multi-zone controllable lighting module for versatile options
IP67 protection for harsh industrial environments
