ID800 Series Smart Code Reader

Fixed code readers

ID800 Series Smart Code Reader

  • 45 models
  • from $499.00
  • Series HIK-ID800

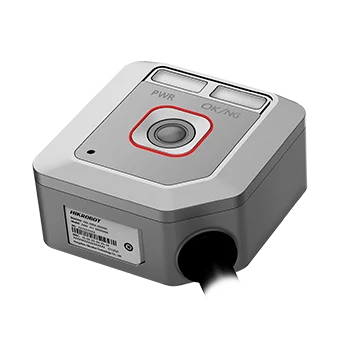

The ID800 Series Smart Code Reader is a range of 45 fixed code readers from Hikrobot, from $499.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 45 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.3 MP, 3.1 mm lens, 1.3 MP, 4.9 mm lens
Interface
GigE, Serial, USB
Resolution
Up to 3 MP
Lens mount
M10
Series
ID800 series
Colour
Mono
Sensor format
1/2.5" and smaller

Features

  • Ultra-compact: fits all kinds of machines and tight workstations
  • In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
  • Built-in orange circular aiming light clearly marks the field of view for fast installation and setup
  • Beeper and status indicators show operating status for easy on-site setup
  • USB-HID, USB-CDC and RS-232 output modes
  • USB-HID, USB-CDC, RS-232 and RJ45 output modes
  • Built-in laser aiming clearly marks the field of view for fast installation and setup

All 45 models in the ID800 Series Smart Code Reader

Link
MV-ORF-120GH-R0.3 MP, 3.1 mm lens640 × 480RS-232Mono, 1/6", 3.7 μm × 3.7 μm$499.00quoteView
MV-ORF-120GH-U0.3 MP, 3.1 mm lens640 × 480USB2.0Mono, 1/6", 3.7 μm × 3.7 μm$499.00quoteView
YT-IDA03-03WS0.3 MP, 3.1 mm lens640 × 480RJ45Mono, 1/6", 3.7 μm × 3.7 μm$499.00View
MV-ID813M-05S-WBN-NR-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBN-SR-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBN-SR-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBN-NR-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID803M-03S-WBN-SR-R0.3 MP, 3.1 mm lens640 × 480RS-232Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-ID803M-03S-WBN-SR-U0.3 MP, 3.1 mm lens640 × 480USB2.0Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-IDA05X-05WSU1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WNU1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WNR1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WSR1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA02X-03WSR0.3 MP, 3.1 mm lens640 × 480RS-232Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-IDA02X-03WSU0.3 MP, 3.1 mm lens640 × 480USB2.0Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-ID803M-03S-WBP-SR-R0.3 MP, 3.1 mm lens640 × 480RS-232Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-ID803M-03S-WBP-SR-U0.3 MP, 3.1 mm lens640 × 480USB2.0Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-ID813M-05S-WBP-SR-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBP-NR-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBP-NR-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBP-SR-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID800M-NRU1.3 MP, 4.9 mm lens1280 × 1024USB2.0$719.00View
MV-ID813M-05S-WBN-SR1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID803M-03S-WBN-SR0.3 MP, 3.1 mm lens640 × 480RJ45Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-ID813M-05S-WBN-NR1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-IDA02X-03WSPU0.3 MP, 3.1 mm lens640 × 480USB2.0Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-IDA02X-03WSPR0.3 MP, 3.1 mm lens640 × 480RS-232Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-IDA05X-05WSPR1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WSPU1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WNPR1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WNPU1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-ID803M-03S-WBP-SR0.3 MP, 3.1 mm lens640 × 480RJ45Mono, 1/6", 3.7 μm × 3.7 μm$719.00View
MV-ID813M-05S-WBP-SR1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-ID813M-05S-WBP-NR1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00View
MV-IDA02X-03WS0.3 MP, 3.1 mm lens640 × 480RJ45Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-IDA02X-03WSP0.3 MP, 3.1 mm lens640 × 480RJ45Mono, 1/6", 3.7 μm × 3.7 μm$719.00quoteView
MV-IDA05X-05WS1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WSP1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WN1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
MV-IDA05X-05WNP1.3 MP, 4.9 mm lens1280 × 1024RJ45Mono, 1/4”, 2.7 μm × 2.7 μm$719.00quoteView
CT-A12M-C-WBN-SR-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0$779.00View
MV-ORF-150H-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$779.00quoteView
MV-ORF-150GH-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$779.00quoteView
MV-ORF-150H-R1.3 MP, 4.9 mm lens1280 × 1024RS-232Mono, 1/4”, 2.7 μm × 2.7 μm$779.00quoteView
MV-ORF-150GH-U1.3 MP, 4.9 mm lens1280 × 1024USB2.0Mono, 1/4”, 2.7 μm × 2.7 μm$779.00quoteView
