Fixed code readers

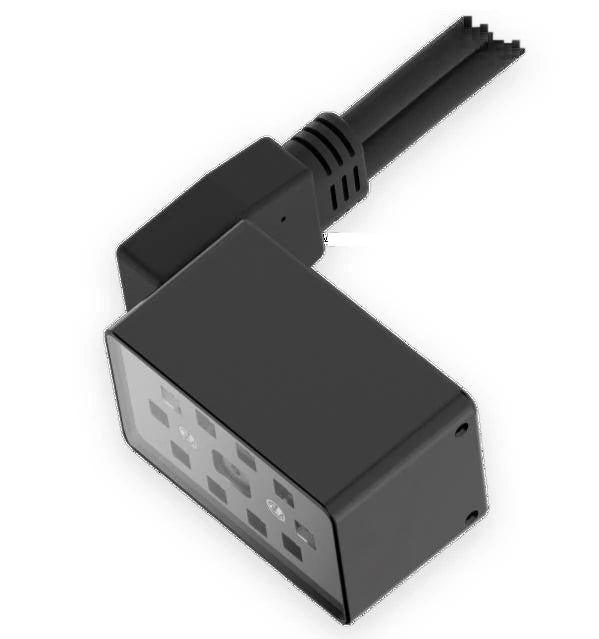

Compact R series fixed industrial barcode reader (R17)
- 8 models
- from $479.00
- Series LS-R17
The Compact R series fixed industrial barcode reader (R17) is a range of 8 fixed code readers from LumaSpec Vision, from $479.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, 0.3 MP, USB 2.0, 1.2 MP, 1.2 MP, USB 2.0
- Resolution
- Up to 3 MP
- Shutter
- Global
- Interface
- Ethernet, USB
Features
- OneClick debugging: one-click trigger, fast and accurate decoding
- Stable reading: 10 LED lighting ensures clear reading under various working conditions
- Flexible deployment: compact integrated design + rich communication protocols
- Machine vision algorithm engine
- IP65 durable and reliable
- Supports software and hardware triggering
- Easy to get started
Typical uses
- 3C electronics
- Photovoltaic new energy
- Semiconductor
- SMT / PCB processing
- Logistics
All 8 models in the Compact R series fixed industrial barcode reader (R17)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-R170-S1 | 0.3 MP, USB 2.0 | 640 x 480 | USB2.0, RS232 | Short 60~120 | $479.00 | View |
| LS-R170-S2 | 0.3 MP, USB 2.0 | 640 x 480 | USB2.0, RS232 | Long 100~200 | $479.00 | View |
| LS-R170-E1 | 0.3 MP | 640 x 480 | Ethernet 100 Mbit/s | Short 60~120 | $479.00 | View |
| LS-R170-E2 | 0.3 MP | 640 x 480 | Ethernet 100 Mbit/s | Long 100~200 | $479.00 | View |
| LS-R172-S1 | 1.2 MP, USB 2.0 | 1280 x 960 | USB2.0, RS232 | Short 60~120 | $559.00 | View |
| LS-R172-S2 | 1.2 MP, USB 2.0 | 1280 x 960 | USB2.0, RS232 | Long 100~200 | $559.00 | View |
| LS-R172-E1 | 1.2 MP | 1280 x 960 | Ethernet 100 Mbit/s | Short 60~120 | $559.00 | View |
| LS-R172-E2 | 1.2 MP | 1280 x 960 | Ethernet 100 Mbit/s | Long 100~200 | $559.00 | View |
