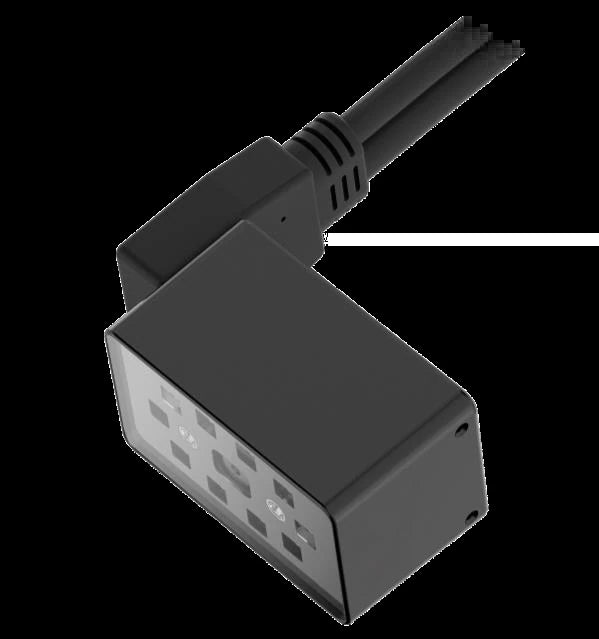

Representative photo of this series
Fixed code readers
Compact R series fixed industrial barcode reader, 1.2 MP, USB 2.0, focal length Short 60~120 (LS-R172-S1)
Model LS-R172-S1
- Resolution1280 x 960
- Speed120FPS
- Focal lengthShort 60~120
- ShutterGlobal
$559.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.59 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Cost-effective compact fixed industrial barcode reader: OneClick debugging, stable reading with 10 LED lighting under various working conditions, and flexible deployment thanks to a compact integrated design and rich communication protocols.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-R172-S1 |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Lighting system | 10 high-performance red LEDs |
| Sight | 2 green LED dot aiming |
| View field | 37° horizontally, 28° vertically |
Optics
| Focus mode | Fixed focal length |
|---|---|
| Typical reading depth of field | 60~200mm |
| Focal length (mm) | Short 60~120 |
Sensor and imaging
| Max acquisition frame rate | 120FPS |
|---|---|
| Image sensor | 1280*960 Pixel Global Shutter CMOS |
| Resolution | 1280 x 960 |
| Shutter | Global |
Interfaces and I/O
| Communication interface | USB2.0, RS232 |
|---|---|
| Supported communication protocols | USB HID, RS232 |
Environment and compliance
| Ambient temperature | -10~50°C |
|---|
Electrical
| Input/Output IO | 1 channel isolated IO input + 1 channel isolated IO output (NPN type and PNP type can be configured) |
|---|---|
| Powered by | 24V DC |
| Protection level | IP65 |
| Voltage | 24 V DC |
Mechanical
| Shipping weight | 0.59 kg |
|---|
Other models in the Compact R series fixed industrial barcode reader (R17) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-R170-S1 | 0.3 MP, USB 2.0 | $479.00 | 2 in stock | View |
| LS-R170-S2 | 0.3 MP, USB 2.0 | $479.00 | 2 in stock | View |
| LS-R170-E1 | 0.3 MP | $479.00 | 4 in stock | View |
| LS-R170-E2 | 0.3 MP | $479.00 | 3 in stock | View |
| LS-R172-S2 | 1.2 MP, USB 2.0 | $559.00 | 4 in stock | View |
| LS-R172-E1 | 1.2 MP | $559.00 | 5 in stock | View |
| LS-R172-E2 | 1.2 MP | $559.00 | 4 in stock | View |
