0.117× telecentric lens, APS-C, F-mount (LS-TCL-0130)

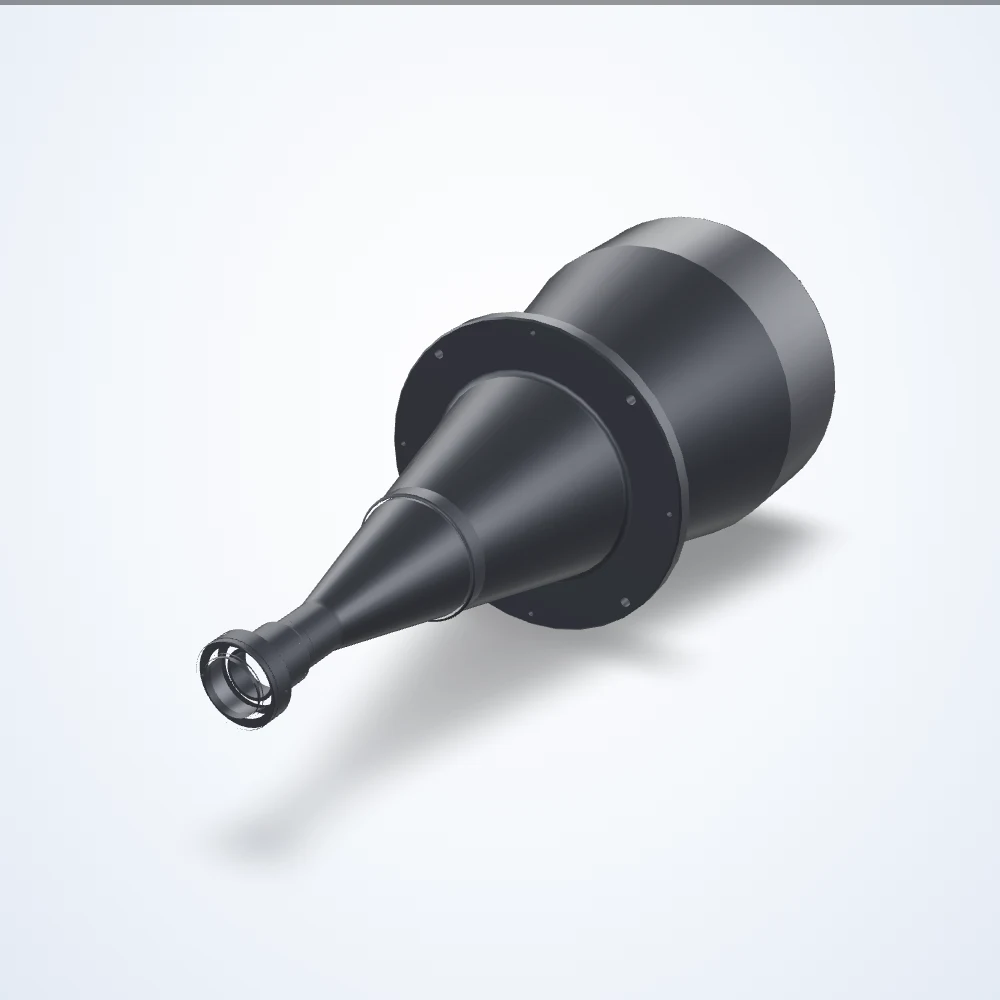

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.117× telecentric lens, APS-C, F-mount (LS-TCL-0130)

Model LS-TCL-0130

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527.6 mm; depth of field 48.2 mm.

Datasheet (PDF) - LS-TCL-0130 3D model (STEP) - LS-TCL-0130

Specifications

Model	LS-TCL-0130
Magnification	0.117×
Working distance	527.6 mm
Sensor format	APS-C
Mount	F-mount
Depth of field	48.2 mm
4/3″ IMX367	130.68 x 130.77 mm
4/3″ IMX387	161.28 x 90.94 mm
Aps-c IMX342	191.11 x 143.33 mm
Dimensions approximate	648.4 x 260 x 260 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.07
Filter thread	No Filter Threads
Front diameter	260 mm
Image circle	28 mm
Lens type	Telecentric
Line 4k-7µm	245.04 mm
Operating temperature range	0 to 40°C
Resolution (pixel size)	43 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°
Working ƒ/n	f/8
Weight	10075 Grams
