Home / Lenses / Telecentric lenses / 0.075× telecentric lens, APS-C, M42-Mount

0.075× telecentric lens, APS-C, M42-Mount (LS-TCL-0135)

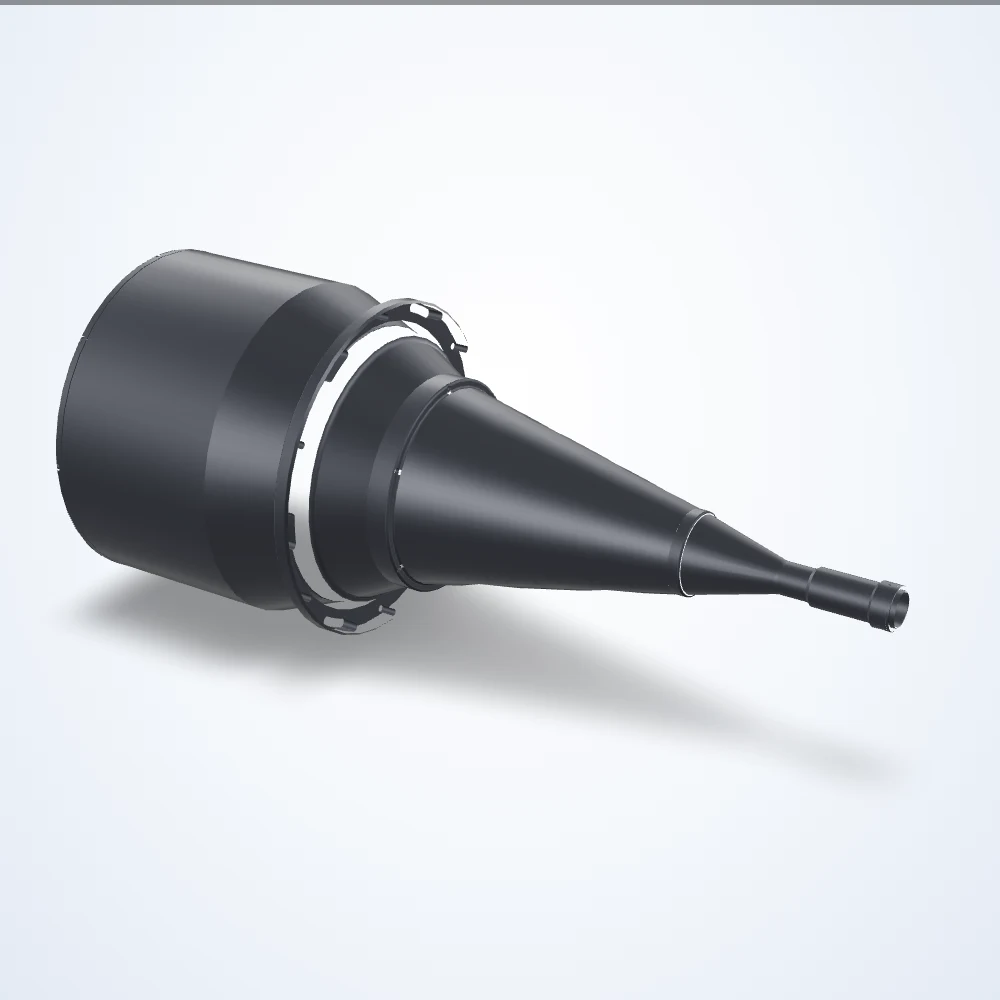

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.075× telecentric lens, APS-C, M42-Mount (LS-TCL-0135)

Model LS-TCL-0135

0.075× telecentric lens, APS-C, M42-Mount. Working distance 500 mm. Depth of field 117.3 mm.

Datasheet (PDF) - LS-TCL-0135 3D model (STEP) - LS-TCL-0135

Specifications

Model	LS-TCL-0135
APS-C IMX342	298.13 x 223.6 mm
Depth Of Field	117.3 mm
Distortion Maximum (%)	< 0.15
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
Front Diameter	417 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	382.27 mm
Magnification	0.075×
Mount	M42-Mount
Resolution (Pixel Size)	68 μm
Telecentricity Maximum	0.15°
Telecentricity Typical	< 0.09°
Working Distance	500 mm
Working ƒ/N	f/8
