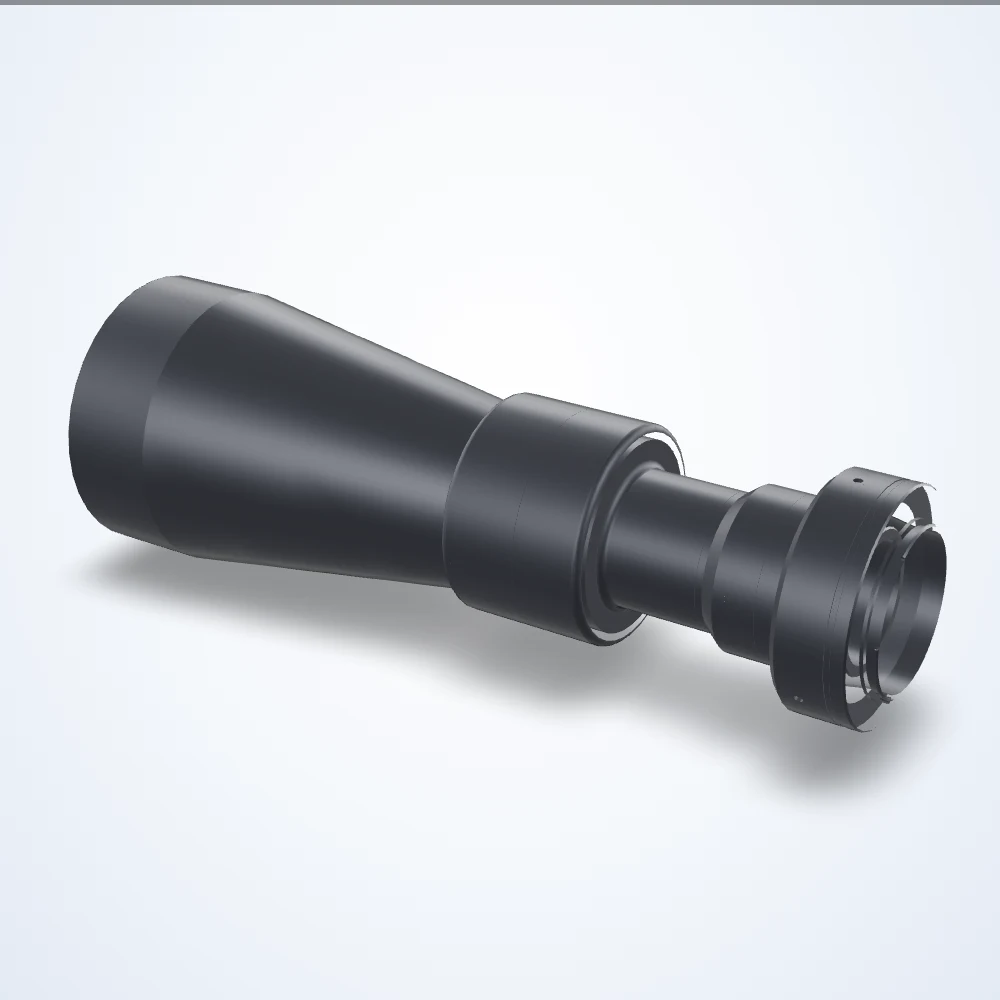

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.401× telecentric lens, APS-C, F-mount (LS-TCL-0118)
Model LS-TCL-0118
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 4.1 mm.
Specifications
| Model | LS-TCL-0118 |
|---|---|
| Magnification | 0.401× |
| Working distance | 157.8 mm |
| Sensor format | APS-C |
| Mount | F-Mount |
| Depth of field | 4.1 mm |
| 4/3″ IMX367 | 38.13 x 38.15 mm |
| 4/3″ IMX387 | 47.06 x 26.53 mm |
| Aps-c IMX342 | 55.76 x 41.82 mm |
| Dimensions approximate | 237.3 x 80 x 80 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 80 mm |
| Image circle | 28 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 71.50 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 13 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/8 |
| Weight | 1088 Grams |
