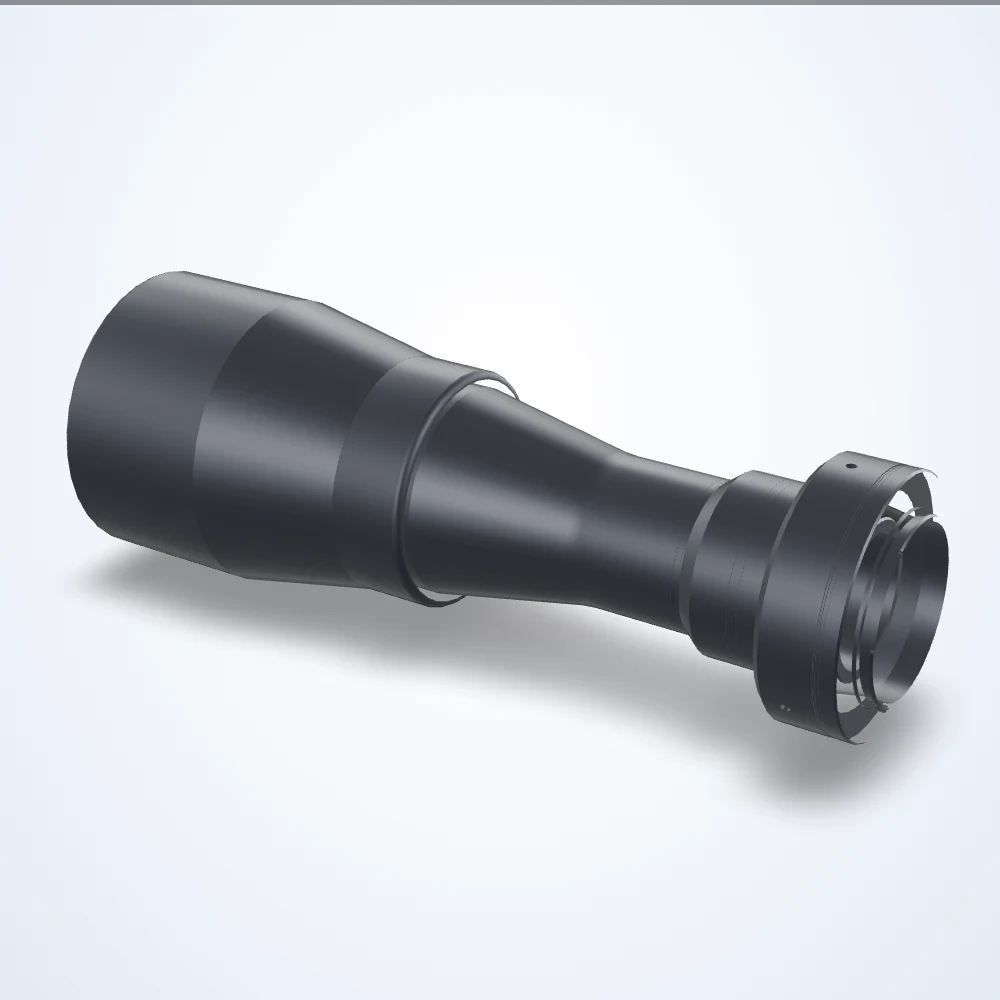

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.469× telecentric lens, APS-C, F-mount (LS-TCL-0116)
Model LS-TCL-0116
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 3 mm.
Specifications
| Model | LS-TCL-0116 |
|---|---|
| Magnification | 0.469× |
| Working distance | 132.9 mm |
| Sensor format | APS-C |
| Mount | F-Mount |
| Depth of field | 3 mm |
| 4/3″ IMX367 | 32.6 x 32.62 mm |
| 4/3″ IMX387 | 40.23 x 22.69 mm |
| Aps-c IMX342 | 47.68 x 35.76 mm |
| Dimensions approximate | 213.3 x 75 x 75 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Front diameter | 75 mm |
| Image circle | 28 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 61.13 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 11 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.02° |
| Working ƒ/n | f/8 |
| Weight | 863 Grams |
