Home / Lenses / Telecentric lenses / 0.281× telecentric lens, APS-C, F-Mount

0.281× telecentric lens, APS-C, F-Mount (LS-TCL-0122)

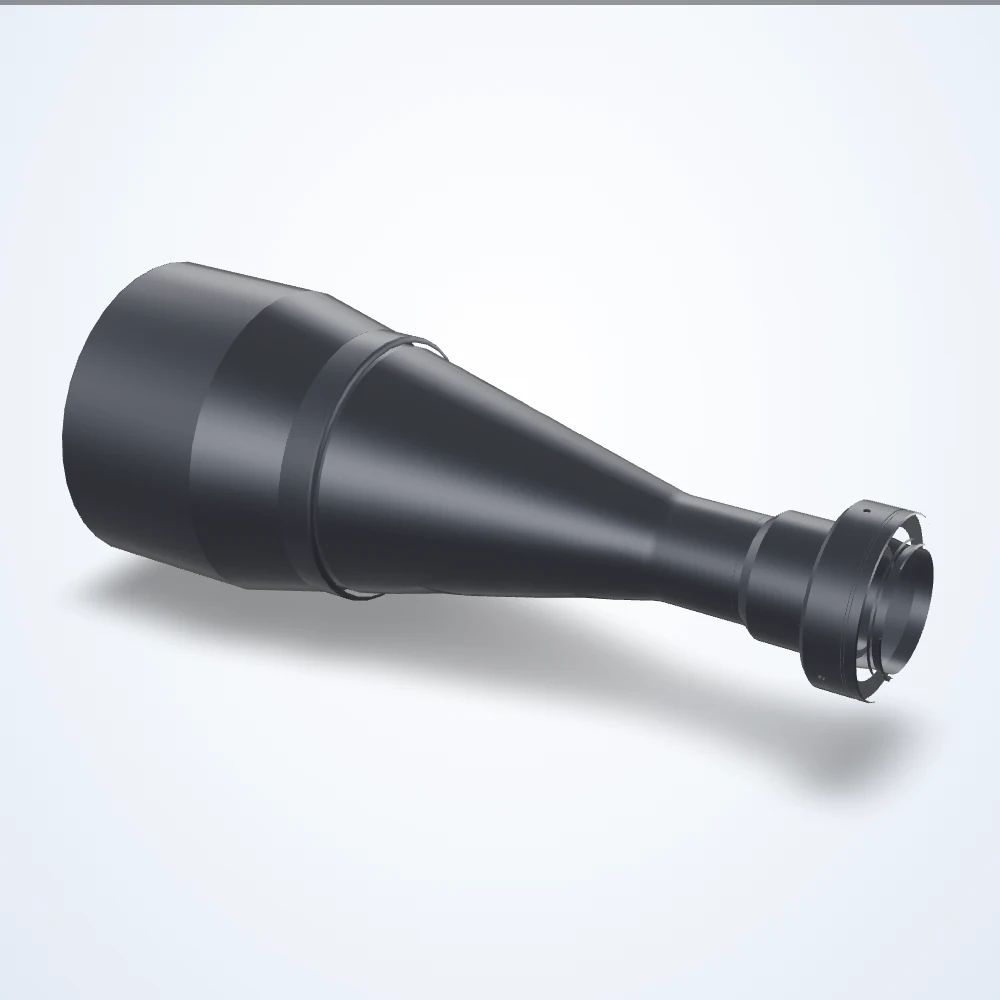

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.281× telecentric lens, APS-C, F-Mount (LS-TCL-0122)

Model LS-TCL-0122

0.281× telecentric lens, APS-C, F-Mount. Working distance 226.8 mm. Depth of field 8.4 mm.

Datasheet (PDF) - LS-TCL-0122 3D model (STEP) - LS-TCL-0122

Specifications

Model	LS-TCL-0122
APS-C IMX342	79.57 x 59.68 mm
Depth Of Field	8.4 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Front Diameter	116 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	102.03 mm
Magnification	0.281×
Mount	F-Mount
Resolution (Pixel Size)	18 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.03°
Working Distance	226.8 mm
Working ƒ/N	f/8
