0.117× telecentric lens, APS-C, M42-Mount (LS-TCL-0131)

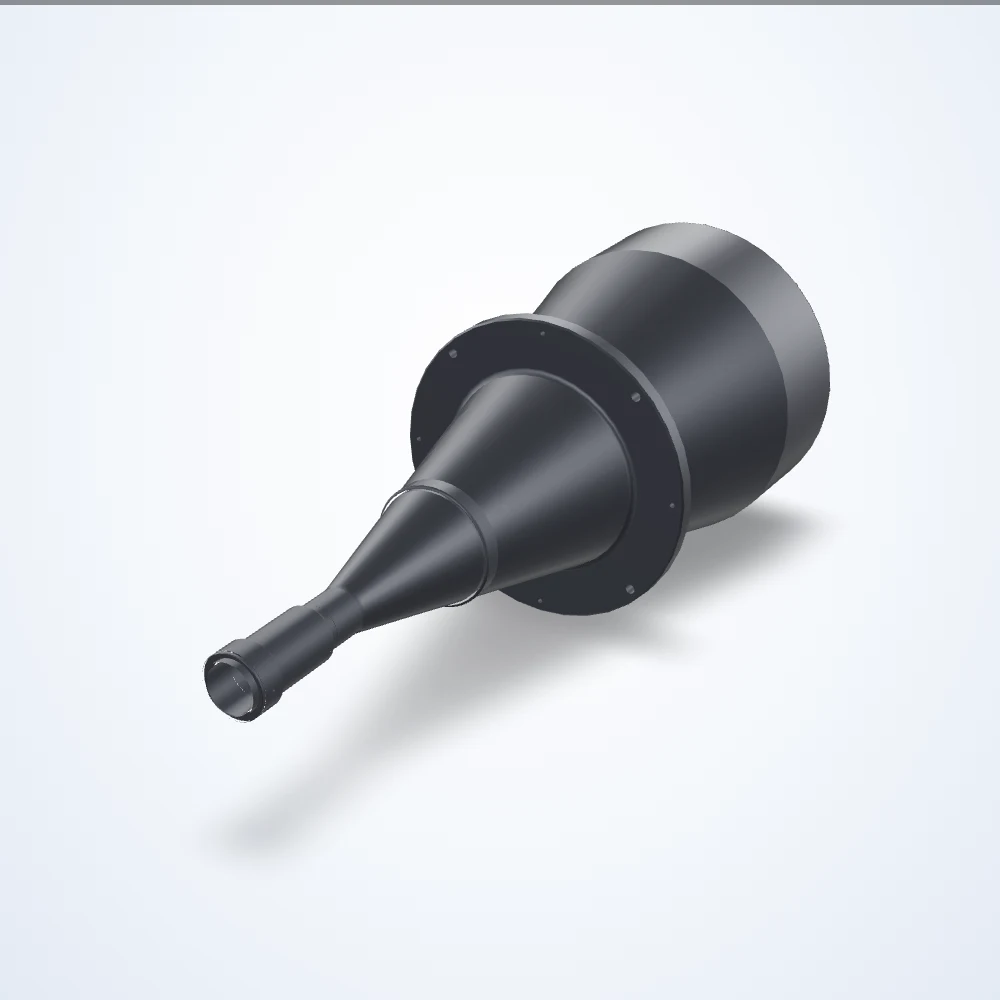

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.117× telecentric lens, APS-C, M42-Mount (LS-TCL-0131)

Model LS-TCL-0131

0.117× telecentric lens, APS-C, M42-Mount. Working distance 527.6 mm. Depth of field 48.2 mm.

Datasheet (PDF) - LS-TCL-0131 3D model (STEP) - LS-TCL-0131

Specifications

Model	LS-TCL-0131
APS-C IMX342	191.11 x 143.33 mm
Depth Of Field	48.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.07
Filter Thread	No Filter Threads
Front Diameter	260 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	245.04 mm
Magnification	0.117×
Mount	M42-Mount
Resolution (Pixel Size)	43 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	527.6 mm
Working ƒ/N	f/8
