Home / Lenses / Telecentric lenses / 0.617× telecentric lens, APS-C, M42-Mount

0.617× telecentric lens, APS-C, M42-Mount (LS-TCL-0115)

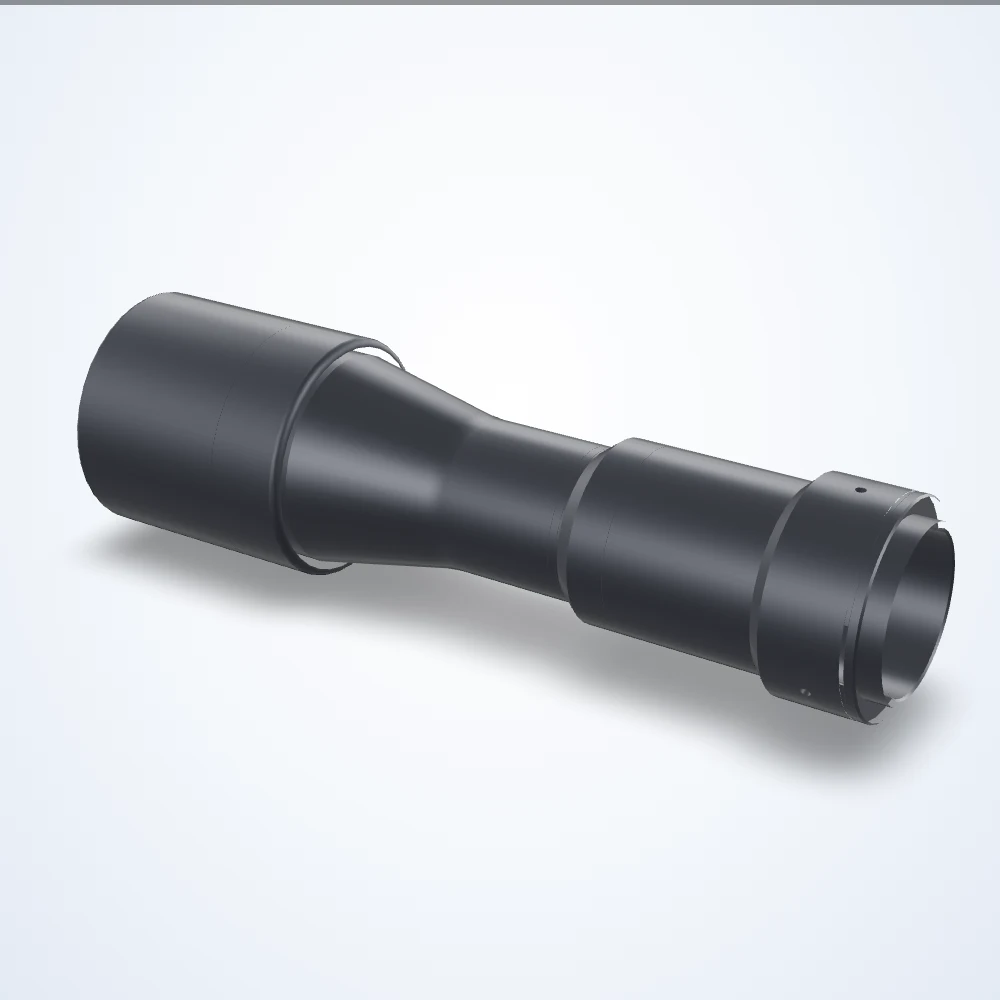

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.617× telecentric lens, APS-C, M42-Mount (LS-TCL-0115)

Model LS-TCL-0115

0.617× telecentric lens, APS-C, M42-Mount. Working distance 102.6 mm. Depth of field 2.4 mm.

Datasheet (PDF) - LS-TCL-0115 3D model (STEP) - LS-TCL-0115

Specifications

Model	LS-TCL-0115
APS-C IMX342	36.24 x 27.18 mm
Depth Of Field	2.4 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.07
Filter Thread	No Filter Threads
Front Diameter	61 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	46.47 mm
Magnification	0.617×
Mount	M42-Mount
Resolution (Pixel Size)	11 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.07°
Working Distance	102.6 mm
Working ƒ/N	f/11
